3U 20" Rack Mount Triple LCD Keyboard Drawer w/ Trackball 88 keys Compact Keyboard. (Model:DRP3W1700A-DVI-Au)

3U 20" Rack Mount Triple LCD Keyboard Drawer w/ Trackball 88 keys Compact Keyboard. (Model:DRP3W1700A-DVI-Au)

3U 20" Rack Mount Triple LCD Keyboard Drawer w/ Trackball 88 keys Compact Keyboard. (Model:DRP3W1700A-DVI-Au)

DRP3W1700A-DVI-Au
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com. Meet our 3U short depth DRP3W1700A-DVI Series drawer, providing a Triple (or Dual) display drawer with integrated Keyboard drawer within only 20" depth. This next generation platform provides a new rugged design with updated technolgy. For instance it offers a new unified OSD control allowing independent panel control or allows control of all panels simultaneously. The unit also features new torque hinge design and steel friction slides, making it ideally suited for Mobile environments. In addition, the Rear I/O Panel includes customizable options such as a variety of discrete video inputs, an optional USB Hub, and KVM options as well.

Specification

ENCLOSURE
• 3U 20”D Dual/Triple LCD w/ Keyboard
• All Aluminum Construction
• Integrated Struts for Support
• Built-in Rugged Friction Slides
• Full Cable Management Guides
• Unified Button Board Operation
• Independent Drawer Operation
• Thumb Screw Front to secure unit
• Inset/Flush 5” Collapsible Handles
• Mounts in Racks 20-28” in depth
• Variety of Back Panel Features
• 12VDC/XLR Input w/AC Transformer
DISPLAY
• 3x17” Wide Screen FHD Displays
• 1920x1200 WUXGA Resolution
• Viewing Angles 70L/70R/60U/60D
• 275 NITS Brightness (LED BLU)
• Contrast Ratio 800:1
• Response Time 16ms
• VGA, DVI, S-Video, Composite, & YPbPr
• Surface Glare-Anti-Reflective
• Optional Resistive or PCAP Touch



Keyboard & Pointer Options

DRP3W1700A-DVI-Au
• Compact Keyboard w/88 Keys
• 2 Button Trackball


DRP3W1700A-DVI-Ou
• Compact Keyboard w/88 Keys
• 2 Button Touchpad


DRP3W1700A-DVI-Vu
*Left-Hand or Right Hand Orientation of Storage Tray Available • Compact Keyboard w/103 Keys
• Storage Tray w/ Optical Mouse


DRP3W1700A-DVI-Pu
• Backlit NEMA 4 Sealed Keyboard w/ 81 Keys
• Large 38mm 3 Button Trackball


DRP3W1700A-DVI-Tu
• IP55 Keyboard w/87 Keys (Medical/Cleanable)
• 2 Button Pointer


DRP3W1700A-DVI-Su
*Left-Hand or Right Hand Orientation of Storage Tray Available • IP 54 Keyboard w/88 Keys
• 2 Button Trackball


DRP3W1700A-DVI-Qu
• Non/Backlit NEMA 4 Sealed Keyboard w/97 Keys
• 2 Button Touchpad

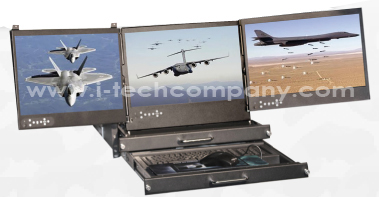

The base model unit comes as shown with a variety of dedicated inputs for each monitor.

If 1 input is required for use with all screens for a “spanning” application then a separate module is required. For 4 Port - Dual & Triple View KVM Options they are coming soon.
