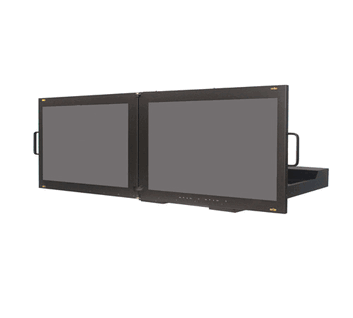

2U 24" 1920 x 1200 widescreen Dual LCD Rackmount LCD Drawer with SAW touch USB controller (Model: ARP2D2400SW-L)

2U 24" 1920 x 1200  widescreen Dual LCD Rackmount LCD Drawer with SAW touch USB controller (Model: ARP2D2400SW-L)

2U 24" 1920 x 1200 widescreen Dual LCD Rackmount LCD Drawer with SAW touch USB controller (Model: ARP2D2400SW-L)

Main Feature

    • 2U foldable dual 24 inch widescreen LCD display Drawer
    • Dual DVI & VGA Port
    • 1920 x 1200 WUXGA Ultra high resolution
    • Build in 2x 2 watts speakers
    • Dual Saw touch screen with USB controller
    • DC 9~36V power input with M12 connector
    • Independent front osd control buttons to optimized display
ARP2D2400SW-L
  • Specifications
  • Download
LCD
Screen Size Dual 24"
Backlight Type LED
Resolution 1920*1200
Contrast Ratio 1000:1
Brightness ( cd/m2 ) 250
View Angles ( H/V ) 178/178
Pixel Size ( HxV ) mm 0.270x0.270
Max. Color 16.7M
MTBF ( Hrs. ) 30,000

Input Signals
DVI-D Dual DVI-D 24Pin Connector (Female)
VGA Dual D-SUB 15Pin Connector (Female)
Audio 1x 3.5" Jack
Power Input DC9~36V with M12 connector (Male)
Touch-USB Dual USB A Type connector

Power Specifications
Wide Range DC Power Input M12 connector with internal wide Range DC 9-36V power module

User Controls Interface:
Power ON / OFF via Front Button
Power Mode Status LED indicator
OSD ( On Screen Display ) Buttons

Mechanical and Environment:
Height 2U Foldable
Rack Depth 27" to 42" ( cabinet front rail to rear rail )
Construction Metal Housing
Operating Temperature 0 - 50 deg. C
Operating Humidity 10% - 90% ( non -condensing )
Anti-Vibration 5 - 500 Hz / 1 Grms PTP
Anti-Shock 15G / Peak ( 11 ms )
Physical Dimension (WxHxD) 443 x 88 x 750 (mm)
Packing Dimension (WxHxD) 550 x 220 x 900 (mm)
Net Weight / Gross Weight 24 / 30 (KGs)
Certification and Approvals CE / FCC / RoHs
