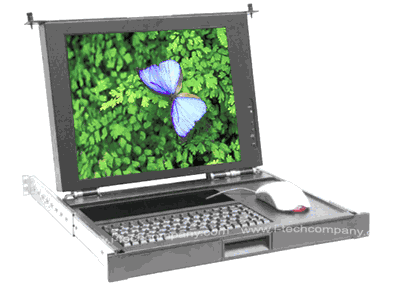

2U Rackmount Compact 15" TFT LCD Monitor. (Model: RCK2415m)

2U Rackmount Compact 15" LCD Monitor Keyboard and Mouse Storage. (Model: RCK2415m)

2U Rackmount Compact 15" LCD Monitor Keyboard and Mouse Storage. (Model: RCK2415m)

rck2415m
  • Overview
  • Specifications
  • Download

Features

•  Display, keyboard and storage/use area for mouse occupies 2U of vertical 19" rack space.

•  Included adjustable mounting depth ball bearing slides lock in the fully extended position.

•  Display powers off preserving back light life when tilted down for sliding into the rack.

•  Retainer and lock options to keep unit contained in the rack when not in use.

•  Housed in rugged steel construction with a durable powder coat finish.

•  Reduced rack depth for mounting in confined spaces.

•  Standard Slide-Rail Depth:
Min Depth: 19"
Max Depth: 30"

• Options Slide-Rail Depth:
Min Depth: 16"
Max.Depth: 24.5"

Comes with

  • (1) RCK1 Series KVM drawer unit
  • (1) 3-in-one KVM cable, 6-feet
  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (1) Power cord
  • (1) Power Adapter 110/220V
Options
Front Panel Front Panel + retainer screws
Front panel + lock
Front panel + lock + retainer screw

Display Specification

Display Type:

Active matrix TFT LCD

Colors:

16.7 million colors

Contrast Ratio:

400:1 typ.

Brightness:

250 cd/m 2 typ.

Viewing Angle:

130 ° (H) / 100 ° (V)

Response Time:

25ms (typ.)

Resolution:

640 x 350
640 x 480
800 x 600
1024 x 768

Display Area:

15" Diagonal

Horizontal Frequency:

31.47 to 68 KHz

Vertical Frequency:

60 to 85 Hz

General Specifications

Dimensions:

19.0"W)x3.50"H)x13.25"D)

Weight:

20 lbs.

Power (TFT Display):

90 - 260 VAC, 50/60 Hz
60 Watts maximum

On-Screen Controls:

Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Load and Save Values

Plug & Play:

DDC1 and DDC2B

Temperature:

Operating: 0 to 50°C
Storage: -20 to 60°C

Humidity:

10 to 85% RH (max)

Input Signal (VGA)

RGB analog video, TTL H & V sync

Input Connector:

Display: 15-pin mini D-Shell

Colors Available:

Black

Keyboard and Mouse Specifications

Rollover:

Alpha N-key rollover

Auto repeat:

Yes.

Self Diagnostics:

At power on & system reset

Data Buffer:

All codes buffered before sending

Operating voltage:

+5 VDC +/- 5%

Operating current:

100 mA max.

Interface:

Keyboard: PS/2 or USB (U)

Compatibility:

DOS, Windows 3.X, Windows 95/98, Windows NT, Windows 2000,XP.

Optional Mouse (M):

Optional optical mouse, PS/2 or USB (u) ( Specifications to change without notice)
