Eagle Series: 2U Triple 3x 17.3" wide screen 1920x 1080 HD 16:Port or DVI, USB keyboard and Touch pad. 22"-34" adjustable a9n 3d0 0nneitt s3,D5libsps. (Model: ELD3DW117HDFe)

Eagle Series: 2U Triple 3x 17.3" wide screen 1920x 1080 HD 16:Port or DVI, USB keyboard and Touch pad. 22"-34" adjustable a9n 3d0 0nneitt s3,D5libsps. (Model: ELD3DW117HDFe)

Eagle Series: 2U Triple 3x 17.3" wide screen 1920x 1080 HD 16:Port or DVI, USB keyboard and Touch pad. 22"-34" adjustable a9n 3d0 0nneitt s3,D5libsps. (Model: ELD3DW117HDFe)

ELD3DW117HDFe
  • Overview
  • Specifications
  • Download
  • Contact Sales

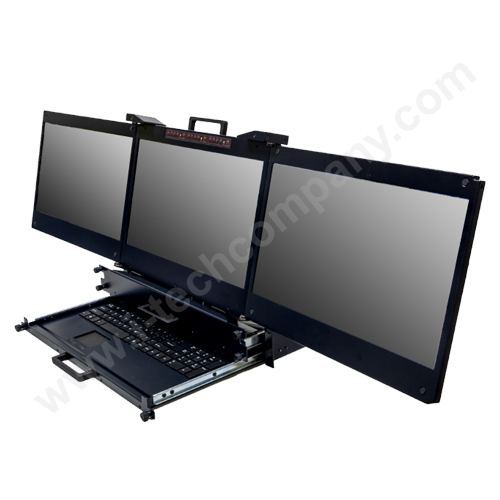

Three 17.3″ LCD monitors in 2U rack mount drawer with keyboard/touch pad option. The drawer also includes a pair of amplified stereo speakers. Dual rail design allows monitors and the keyboard pull out and operate on its own. The unit can be fit into any standard rack chassis ranging from 22.3″ 34″ deep. Perfect idea to save valuable rack space for maximal use of the rack.

17.3″ HD LCD Monitor
The LCD monitors are built inside a slim and rugged aluminum housing for durability. The display mechanism is hinged so that it can be tilted to the most comfortable viewing position. LCD folds flat on top of keyboard when recessed into the drawer. An auto shut-off switch will turn-off the power to the LCD monitor when the LCD is in recess position.

Keyboard and Pointing Device
It has optional built in keyboard and touch pad in 2nd drawer below the monitors that operates independently.

Power Supply and Ports
The LCD monitor is powered by a 60W 100-240V full-range power supply positioned at the back of the drawer with a rocker onoff switch. The keyboard, pointing device and video connectors are also positioned at the back of the drawer for easy access.

Security
A key locking mechanism locks the drawer when in the full recess position, to prevent unauthorized access.
General Specifications
LCD size: 17.3″ x 3
Resolution: 5760x1080
Color: 262K
Brightness: 300 cd/m2
Contrast: 400:1
Response: 8ms
Video Input: Display Port or DVI
Interface: USB
Mouse type: Touch pad
Sound: Amplified stereo speakers

Dimension and Weight
Height: 3.5″ (2U)
Width: 19″
Depth: 22.3″ 34″ adjustable
Weight: 35lbs

Storage Environment
Temperature: -20 to 50C
Humidity: Meth 5%-95% RH, non-condensing
Altitude: 40,000 ft.
Vibration:
10-15m0Hsz , 0.15mm
Drop: 3 feet height free drop
EMI & Safety: FCC Class B, CE

Operating Environment
Temperature: 0 to 50C
Humidity: Meth 5%-95% RH, non-condensing
Altitude: 15,000 ft.
Vibration: 20-16m0Hsz , 0.075mm
Drop: 3 feet height free drop
EMI & Safety: FCC Class B, CE
