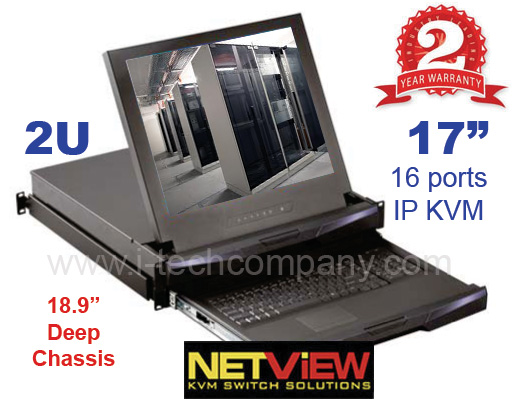

2U KVM over IP 17" TFT Rackmount LCD monitor KVM keyboard w/ 16 port KVM-17" Depth only, with optional Touch Pad (Model: NVIP2417162e) or Trackball (Model: NVIP2417162b/NVIP2417162c)

2U KVM over IP 17" TFT Rackmount LCD monitor KVM keyboard w/ 16 port KVM-17" Depth only, with optional Touch Pad (Model: NVIP2417162e) or Trackball (Model: NVIP2417162b/NVIP2417162c)

2U KVM over IP 17" TFT Rackmount LCD monitor KVM keyboard w/ 16 port KVM-17" Depth only, with optional Touch Pad (Model: NVIP2417162e) or Trackball (Model: NVIP2417162b/NVIP2417162c)

Inquiry/Quote Request
NVIP2417162
  • Overview
  • Specifications
  • Download
Part No.: NVIP2417162b
               NVIP2417162e
Video:

LCD Drawer & KVM Benefits:
  • 2U dual slide 17" or 19" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Short depth design of 480mm ( 18.9" )
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available

Drawer Features & Options:
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 17" / 19" Touchscreen : Capacitive, Resistive
  • 48V, 24V or 12VDC power

Designed for:

Options:

BNC + S-Video DVI-D DC Power Audio Touchscreen

BNC + S-Video Audio

DVI-D Touchscreen - USB

DC Power Touchscreen - Serial

**With DC power option, the depth of NVP2415/2417/2419 will be extended from 480mm (18.9") to 530mm (20.9")

Monitor Grade A 17" or 19" industrial TFT LCD panel
LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
250
250
Backlight
CCFL
CCFL
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
20.4 kgs
( 44.9 lbs )
20.5 kgs
( 45.1 lbs )
Gross
24.8 kgs
( 54.6 lbs )
24.8 kgs
( 54.6 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product
441.6 x 480 x 88 mm / 17.4 x 18.1 x 3.5 inch
Packing
584 x 616 x 216 mm / 23 x 24.3 x 8.5 inch


Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port


Keyboard Selection:

Supporting layouts



Dimensions:
Dimensions ( with KVM )
Product
441.6 x 480 x 88 mm / 17.4 x 18.9 x 3.5 inch
Packing
584 x 616 x 216 mm / 23 x 24.3 x 8.5 inch
Weight ( Net / Gross )
NVP2417
21.1 kgs ( 46.4 lbs ) / 27 kgs ( 59.4 lbs )
NVP2419
21.5 kgs ( 47.3 lbs ) / 27.4 kgs ( 60.3 lbs )
Casing Color
Black ( RAL 9005 )

KVM Integration:
(X) Stands for 17" or 19" LCD size
Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
NVP241X - MC1116
NVP241X - MC1132
1
1
2
-
NVP241X - MC2116
NVP241X - MC2132
1
1
0
-
NVP241X - MC0116
NVP241X - MC0132
1
2
0
-
NVP241X - MC0216
NVP241X - MC0232
1
3
0
-
NVP241X - MC0316
NVP241X - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP241X - CIP8
NVP241X - CIP16
NVP241X - CIP32
1
1
0
NVP241X - CCE8
NVP241X - CCE16
NVP241X - CCE32
1
0
0
NVP241X - C8
NVP241X - C16
NVP241X - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
NVP241X - M118
NVP241X - M1116
-
1
1
2
NVP241X - M218
NVP241X - M2116
-
1
1
0
NVP241X - M018
NVP241X - M0116
-
1
2
0
NVP241X - M028
NVP241X - M0216
-
1
3
0
NVP241X - M038
NVP241X - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP241XIP - 8
NVP241XIP - 16
-
1
1
0
NVP241X - CE8
NVP241X - CE16
-
1
0
0
NVP241X - S801
NVP241X - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
NVP241X - D12
DVI-D KVM Cable : NC-6 / 15 ( 6 or 15 ft )



Top
KVM Detail Specification :
PC Port 8
Console Port 1
PC Port Connector (All Female Types) VGA HDDB 15-pin (shared with PS/2 keyboard and Mouse)
Console Port Connector (All Female Types)
Local Console: PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Remote Console: RJ-45 8P8C
Daisy Chain Port Connector (All Female Types) PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Serial Port (DB9 pin Male) 1
LAN port (RJ-45 8P8C) 1
10BASE-T Ethernet uses Category 3/4/5/5E/6 UTP
100BASE-T Ethernet uses Category 5/5E/6 UTP
Reset button 1
PC selection On Screen Display Menu, Hot Key, Push Button
PC Port LED 8
Bank 7 segment LED 1
On Screen Display Control Yes
Scan Intervals 5~99 sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution Local Console: 1920 x 1440
Remote Console: 1280 x 1024
Daisy Chain MAX Level 8 levels
MAX PC Connection 120
Housing Metal
Power Adapter DC 5V, 2.5A
Operation Temperature 0~50°C
Storage Temperature -20~60°C
Humidity 0~80°C, Non-Condensing
Size 19" Rack Mount / 1RU
Gross Weight 48.4 lbs / 22 kg
Dimension (W x D x H)
inch 17.4 x 24.4 x 1.75
cm 44.2 x 62 x 4.45
LCD Display Specification :
Panel Samsung 17 " LCD Panel
Screen Type TFT
Display Area 337.92(H) x 270.34(V) mm
Contrast Ratio 500 : 1
Viewing Angle 140° (H) x 120° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.2M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Horizontal Synchronization 64 - 80 KHz (Typ.)
Vertical Synchronization 60 - 75 Hz (Typ.)
Input Signal Analog RGB 0.7Vp-p
Power Management VESA DPMS
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Product dimension 48.2(W) x 8.8(H) x 44(D)cm
Packing dimension 59.5(L) x 57(W) x 22(H)cm


Channel Port 8
16
PC Port Connector (All Female Type) PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Cascade Port Connector (All Female Type) PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Channel Port Connector (All Female Type) HDDB 15 pin
Channel Port Connection (Male to Male) HDDB 15 pin 3-in-1 Cable
PC selection On Screen Display Manual, Hot Key, Push Button
LED 1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red)
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1920X1440
Bandwidth 200MHz
Cascade MAX Level 8 levels
MAX. PC Connection 116(4ports) / 120(8ports) / 128(16ports)
Housing Metal
Power Adapter DC 12V 1A
Operation Temperature 0~40 ℃
Storage Temperature 1 -20 ~ 60 ℃
Humidity 0~80%, Non-Condensing

System Requirements:
Local Console Side One VGA Monitor
One Keyboard
One Mouse
Network Side 10/100Mbps Ethernet or Modem
Remote Console Side One computer
Computer side 8 PCs with 8 3-in-one cables (One HDDB 15-pin male to one HDDB 15-pin and two Mini Din 6-pin PS/2 cables)
