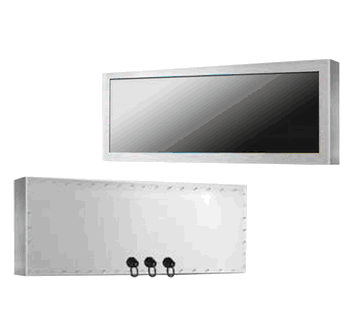

28" Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount Stretch Display/Super Wide, 1920 x 358, 600nits, 1/3 Cut, Stretched Display, Stainless-304 (Model:ECHS2800-SIP)

28" Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount Stretch Display/Super Wide, 1920 x 358, 600nits, 1/3 Cut, Stretched Display, Stainless-304 (Model:ECHS2800-SIP)

28" Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount Stretch Display/Super Wide, 1920 x 358, 600nits, 1/3 Cut, Stretched Display, Stainless-304 (Model:ECHS2800-SIP)

Main Feature

    • Built-in fans improved panel cooling allows up to 24-hours-a-day usage.
    • Modular mechanism design provides flexible product configuration and easy maintenance.
    • Optional to built-in PC eliminates external box.
ECHS2800-SIP
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Size 28" viewable diagonal area
Active Area / Pixel Pitch 698.3(H) x 130.9(V) / 0.3637 (H) x 0.3637(W)
Native Resolution / Colors 1,920x360 / 16.7 Million
Brightness / Contrast 600 cd/m2 (typ) / 2000 : 1
Response Time ≤ 8 ms (G-to-G)
Viewing Angle (typical) H. 178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
Light Source LED Backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W Amplifier
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready
Power 12V DC in
Power Consumption Operation / Power Saving 30 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical With Base(W x H x D) : TBD
Without Base(W x H x D) : TBD
Carton W x H x D = TBD
Weight N.W. / G.W. 3.0 Kgs / 4.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ 816 / 1632 / NA (Sets , By pallet)

Options Video / TV Others
SV + AV Digital Signage(Stand alone)
SV + AV + AV Looping Networking Digital Signage
SV + AV + TV Motion Sensor
  Light Sensor
  Auto-Dimming
