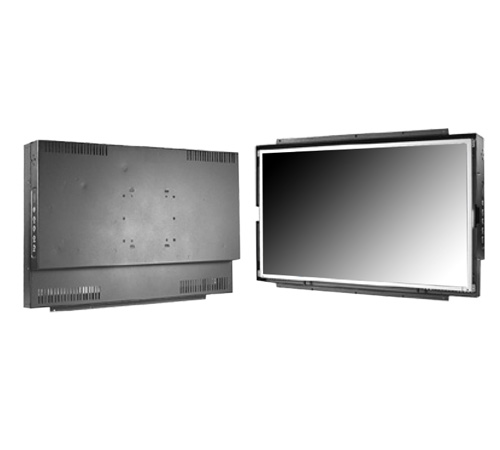

27" Open Frame LCD monitor, 2560x1440 LED-350nits, VGA+HDMI+DP, AC-IN w/Built-in PWR (Model: EOPW2700-2K)

27" Open Frame LCD monitor, 2560x1440 LED-350nits, VGA+HDMI+DP, AC-IN w/Built-in PWR (Model: EOPW2700-2K)

27" Open Frame LCD monitor, 2560x1440 LED-350nits, VGA+HDMI+DP, AC-IN w/Built-in PWR (Model: EOPW2700-2K)

Main Feature

    • High 2K resolution provides an exceptional experience regardless of any application
    • Modular construction for more flexibility in terms of product configuration as well easy maintenance
    • A brightness sensor for auto adjustment of the screen so that it’s neither too bright nor too dark
    • Robust aluminum housing to withstand rugged applications
    • Optional build-in touch screen functionality for an interactive application
    • Optional protective glass to keep dust, dirt, and moisture away from the display
    • Standard VGA connector but also available with optional AV, SV, and AV-Looping
    • Energy-efficient based on advance power management
    • Customizable design available upon request for Open frame/Panel mount/Stainless steel OEM customers
EOPW2700-2K
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 27" viewable diagonal area
Active Area / Pixel Pitch 597.89(H) x 336.31(V) mm / 0.3114(H) x 0.3114(V) mm
Native Resolution / Colors 2560(H) x 1440(V) / 16.7M
Brightness / Contrast 350 cd/m2 (typ) / 1000 : 1
Response Time < 6 ms (G-to-G)
Viewing Angle (typical) H.178° (-89° ~ + 89°) , V. 178°(-89° ~ +89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System N / A
Input Terminals 1 x VGA , 5 x HDMI, 1 x DP, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 42.5 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 12 Kgs / 13.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)


Options:

  • Touch: Resistive touch, Capacitive, SAW, Infrared, and Protected glass
  • Video/TV: SV + AV, SV + AV + AV_Looping, SV + AV + TV
  • Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
  • Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
