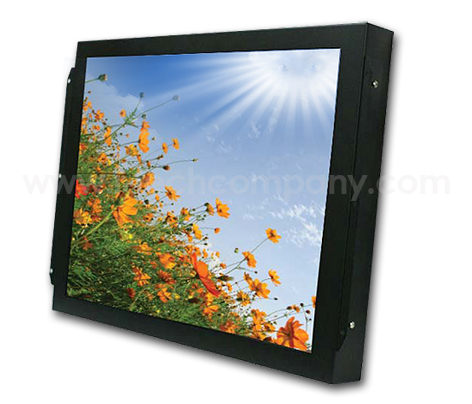

Industrial Chassis/Surface Mount Metal Housing High Brightness 27" LCD 1920*1080 1000nits 1000:1 with VGA input (Model: YCHR2700HB)
Industrial Chassis/Surface Mount Metal Housing High Brightness 27" LCD 1920*1080 1000nits 1000:1 with VGA input (Model: YCHR2700HB)
X
Inquiry/Quote Request
- Overview
- Download
Features
- High contrast color TFT-LCD Monitor support resolution up to 1920*1080.
- Power management system conforms to VESA DPMS and EPA Energy Star standards.
- Universal Power adapter.
- Support DDC1 & DDC2B for Plug & Play compatibility.
- Advanced OSD control for picture quality adjustment.
- Detachable stand for wall-mounting adjustment.
- Heavy duty monitor with steel frame.
- Custom design by request.
Specifications
| Item | |
| Panel Type | 27-inch TFT LCD |
| Screen Diagonal | 27-inch |
| Active Display Area (mm) | 597.6 (H) x 336.15 (V) |
| Pixel Pitch (um) | 311.25 (per one triad) ×311.25 |
| Number of Pixels | 1920 x 1080 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M colors (RGB 6-bit + Hi-FRC ) |
| Brightness (cd/m) | 1000 cd/m |
| Viewing Angle(Typ.) | 85/85/80/80 ( R/L/U/D) |
| Signal Connector | 15 PIN D-Sub,DVI-D |
| Power Source | DC +12V (+/- 10%) |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ +50 °C |
| Storage Temperature | -20 ~ +60°C |
| Plug & Play | VESA DDC 1/2B |
| Touch Screen (Optional) | Signal Input | Color | Other |
| N: No touch screen or glass | C: VGA Only | B: Black | N: N/A |
| G: Glass | D: VGA + DVI-D | R: Bracket (rear mount) | |
| R: Resistive, RS232 | E: VGA + DVI-D+Audio | S: Stand | |
| U: Resistive, USB | J: VGA + DVI-I+Audio + HDMI |
