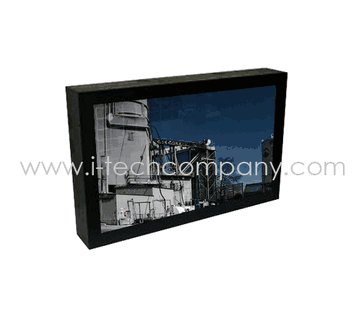

24" Rugged steel Touch LCD Monitor with VGA, DVI interface IP-65 Water-resistant rating at front. (Model: NCHW2400-EMI)

Overview
Download

Features:

Rugged Steel Touch
Res: 1920 x 1080
IP-65 Water Resistant
FULL HD
300nits Brightness

Speficications:

Housing Construction
Rugged steel construction, metal chassis

IP Rating
IP-65 Water-resistant rated at front

LCD Display size
23.6" TFT LCD color display

LCD Resolution
1920 x 1080 full HD resolution

Brightness of LCD (Luminance)
300 cd/m2 high brightness
Optional : 800 nits

Number of Colors :
16.7 million colors.

View Angle :
Left and right : 85 / 85 degree;
Up and down : 80 / 80 degree
Contrast Ratio
1,000 : 1

Response Time
5ms very fast response time

Life of lamp tubes :
50,000 hours

Color of housing :
black
Touch Screen (Optional) :
23.6 5-Wire Resistive Touch screen
Touch resolution : 4096 x 4096

Touch interface
USB or RS232 serial interface

Wall-mount standard
Support VESA-100 wall-mounting
I/O Port :
Support VGA & DVI inputs, audio ports.
OSD control buttons :
On-Screen-Display buttons and On-Off switch.

Speaker
Built-in two stereo 2-Watt speakers at left and right

Vibration and Shock resistant :
Meets industrial and vehicle vibration and shock standards
Heater Module (Nagasaki-Patented)
The display is able to operate at -20 degree C with the Nagasaki-patented heater module.

Temperature
Operation temperature: 0~50 degree C.
Storage temperature: -20~60 degree C.

Power Consumption
Operating mode : less than 55 watts
Stand-by mode : less than 2 watts

Power Input :
AC100-240V input power source
