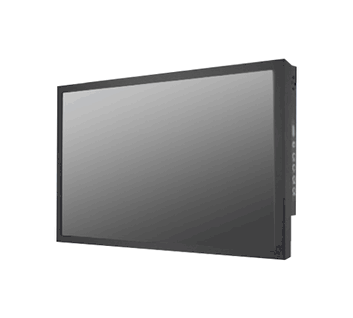

Chassis LCD display, side OSD, Black Color wide 24"-1920x1080, LED-300nits, Wide Working Temp (-20~70 C) VGA+DVI+HDMI signal input ports Built-in power supply with 110/220VAC auto-switching (Model: ECHW2400HDWT2)

Chassis LCD display, side OSD, Black Color wide 24"-1920x1080, LED-300nits, Wide Working Temp (-20~70 C) VGA+DVI+HDMI  signal input ports Built-in power supply with 110/220VAC auto-switching (Model: ECHW2400HDWT2)

Chassis LCD display, side OSD, Black Color wide 24"-1920x1080, LED-300nits, Wide Working Temp (-20~70 C) VGA+DVI+HDMI signal input ports Built-in power supply with 110/220VAC auto-switching (Model: ECHW2400HDWT2)

Main Feature

    • Modular construction for more flexibility in terms of product configuration as well easy maintenance
    • A brightness sensor for auto adjustment of the screen so that its neither too bright nor too dark
    • Robust aluminum housing to withstand rugged applications
    • Optional build-in touch screen functionality for an interactive application
    • VGA connector with optional AV,SV,AV-Looping
    • Complete custom design/solution for OEM customers
    • Standard VGA connector but also available with optional AV, SV, and AV-Looping
    • Energy-efficient based on advance power management
    • Customizable design available upon request for Open frame/Panel mount/Stainless steel OEM customers
ECHW2400HDWT2
  • Overview
  • Specifications
  • Download


ECH Series: Industrial Chassis Wall/Surface Mount Metal Housing LCD Monitor (Optional Integrated Touch Screen/PC/ DC Input/Front NEMA4x/Front Stainless steel bezel and more


Features Highlights:

  • 1. Metal Chassis/Housing for higher Impact protection. (Optional for Front AR Glass or Vandal Resistant glass)
  • 2. Built-in speak built-in speakers that allow the convenience Audio output.
  • 3. Side OSD buttons can prevent unnecessary setting changes.
  • 4. Above 24" LCD will include Front IR Sensor and Remote controller.
  • 5. Auto Video Signal ON / OFF Auto Always Power On

  • 1. Ultra low speed/Noise fan for extra cooling (24" LCD or above)
  • 2. VESA Mounting Hole Pattern
  • 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
  • 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
  • 5. Optional for RS232 Remote Control Protocol: Command Code to set system


LCD Options

  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.
The benefits of LED-backlit LCDs include:
  • Longer operating life
  • Low power consumption
  • Environmental friendliness (Mercury [Hg] free)
  • Greater resistance to mechanical shock (no glass tubes)
  • Quicker illumination to stable brightness
  • Wide dimming ratio (to <1%)
  • Reduction of electronic noise (low DC drive voltage)

  TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

Four-Wire
Resistive
Five-Wire Resistive
Pen Touch
Capacitive
Surface Wave(Saw)
Infrared Touch (Ir)
PRODUCT SIZE 1.7" - 24" 10.4" - 24" 15" - 19" 12" - 24" 10.4" - 30" 10.4" - 42"
TOUCH LIFE 1 - 2 million
touches
30 - 35million
touches
100 million
touches
100 million
touches
50 million
touches
Long-term reliability
SCRATCH RESISTANCE Hard Coated Hard Coated Hard Coated
(SiO)
Hard Coated
(SiO)
Glass Overlay
Mohs hardness rating of 7
Glass Overlay
Mohs hardness rating of 7
CONTAMINANT RESISTANCE Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD Finger, Gloved Hand, Stylus Finger, Gloved Hand, Stylus Stylus Pen Finger Finger, Gloved Hand, Soft pliable stylus Finger, Gloved Hand, Stylus
CONTROLLER USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232



  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

RS-232 Option for LCD/LED monitors.




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 24" viewable diagonal area
Active Area / Pixel Pitch 531.36(H) x 298.89(V) mm / 0.2768(H) x 0.2768(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 16.7M
Brightness / Contrast 300 cd/m2 (typ) / 1000 : 1
Response Time ≤ 5 ms
Viewing Angle (typical) H.170 (- 85 ~ + 85 ) , V. 160 (- 80 ~ + 80 )
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA, 1 x HDMI, 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 61.25 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity -20C ~ 70C (-4F ~ 158F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20C ~ 60C (- 4F ~ 140F) , 10% ~ 90% (no condensation)
Certification   FCC, CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 12 Kgs / 13.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options:

Touch: Resistive, Capacitive, SAW, Infrared, and Protected glass
Video/TV: SV + AV, SV + AV + AV_Looping, SV + AV + TV
Enhanced Panel: Panel with LED backlight, High brightness panel, Wide Temperature, Sunlight Readable
Others optional features: Digital Signage (Standalone), Networking Digital Signage, Motion Sensor, Light Sensor, Auto-Dimming
