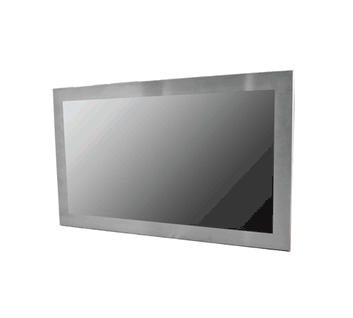

24" High Brightness 1000nits Full IP66/NEMA4X Stainless Steel Chassis w/ HDMI, DVI, VGA (Model: CCHW2400HB-SIP)
High Brightness Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 24" Brightness 1000nits, 1920x1080 based on Default 4 set waterproof connectors Waterproof connectors & cables: HDMI+DVI+VGA & Power 6ft long only with external 100~240V AC + adapter 0 to 50 C Operating Temp
Main Feature
- High Contrast color LCD Monitor with resolution up to XGA (1024x768)
- Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance
- Full IP65 Stainless Design
- Universal Power adapter.
- Support DDC1 & DDC2B for Plug & Play compatibility.
- Advanced OSD control for picture quality adjustment
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
Display |
Viewing Size Image | 24" |
| Active Display Area (mm) | 535(H) x 302 (V) | |
| Pixel Pitch (mm) | 0.276(H)x0.276 (V) | |
| Resolution | 1920 x 1080 | |
| Contrast Ratio | 3000 : 1 (typ.) | |
| Color | 16.7M(8 bits/colors) | |
| Brightness | 1000nits | |
| Viewing Angle | -89~89(H) ; -89~89 (V) | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | HDMI+ DVI+VGA |
Power |
Source | External 100~240V AC + Adapter |
| Consumption | 45W typical, normal operation | |
| Management | VESA DPMS Compliant | |
| Optional |
Touch | Resistive, PCAP,IR |
| High Brightness | 1000,1500 | |
| Auto Dimming | YES | |
| POWER in | DC24V, DV9V~36V | |
| Remote Control | YES | |
| IO | AV,DP |
| Sales Inquiry | ||
 |
Sales Phone: | 888-483-2418/Press 2 510-226-9226/Press 2 |
 |
Email: | sales@itechlcd.com |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
