9U Rackmount 24" Widescreen LCD Display ,LED PIP & Picture by Picture with 5 Wire Resistive Touch (Model: NPW92400-TR-M)

9U Rackmount 24" Widescreen LCD Display,LED PIP & Picture by Picture viewing efficiency with 5 Wire Resistive Touch Screen and USB Controller with M12 Power connector (Model: NPW92400-TR-M)

9U Rackmount 24" Widescreen LCD Display,LED PIP & Picture by Picture viewing efficiency with 5 Wire Resistive Touch Screen and USB Controller with M12 Power connector (Model: NPW92400-TR-M)

Main Feature

    • 9U 24" LCD
    • 1920 x 1200 WUXGA native resolution / 16.7M colors
    • PIP & Picture by Picture viewing efficiency
    • DVI-D, VGA, HDMI 1.3 video input
    • Built-in dual stereo speakers
    • Support Rackmount and VESA mount 100 x 100mm
    • 2-year warranty standard ( up to 5 years )
NPW92400-TR-M
  • Overview
  • Specifications
  • Download

Features:

  • 9U 24" LCD
  • 1920 x 1200 WUXGA native resolution / 16.7M colors
  • PIP & Picture by Picture viewing efficiency
  • DVI-D, VGA, HDMI 1.3 video input
  • Built-in dual stereo speakers
  • Support Rackmount and VESA mount 100 x 100mm
  • 2-year warranty standard ( up to 5 years )

Options:

  • MCS Multi display OSD controller
  • DC power : 12V / 24V / 48V / 125V / 250V
  • S-Video + Composite ( BNC )
  • X24" Touchscreen : Resistive ( 1-point touch )
  • 3G / HD / SD-SDI Broadcast-grade input
  • MIL-type or lockable connector

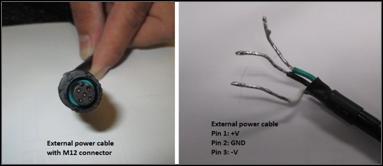

M12 Connector on the unit

EC-PM12 (External Power Cable)

LCD Panel
Size (diagonal) : 24.1"
Max resolution : 1920 x 1200
Brightness (cd/m2) : 300
Backlight : LED
Colors : 16.7 M
Contrast ratio (typ) : 1000 : 1
Viewing angle (H/V) : 178° x 178°
Active area (mm) : 518 x 324
MTBF (hrs) : 30,000
Video input : DVI-D / VGA / HDMI 1.3 standard
Speaker:
Casing Color :
Power Input :
Built-in Dual Stereo Speakers , 2W x 2
Black ( RAL 9005 )
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen on : Max. 40W
Power saving mode : Max. 5W
Power button on : Max. 1W

Environmental
Operating temperature: 0   to 55°C degree
Storage temperature : -20 to 60°C degree
Operating humidity : 20~90%, non-condensing
Storage humidity : 5 ~90%, non-condensing
Operating altitude : 16,000 ft
Non-operating altitude : 40,000 ft
Shock : 10G acceleration ( 11ms duration )
Vibration : 5~500Hz 1G RMS random vibration
Regulatory
Safety : FCC & CE certified
Environmental : RoHS2 & REACH compliant
Mounting : Rackmount,  9U
VESA mount, 100*100mm
Weight
Net :
Gross :

10.3 kgs / 22.7 lbs
12.7 kgs / 27.9 lbs

Dimensions
Product : 551.3 x 64.7 x 385 mm / 21.7 x 2.5 x
Packing : 585 x 124 x 557 mm    / 23 x 4.9 x 2
