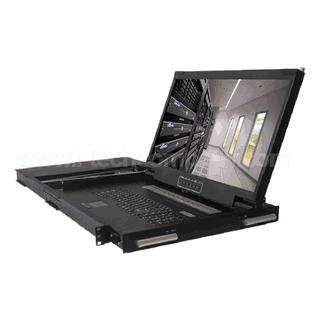

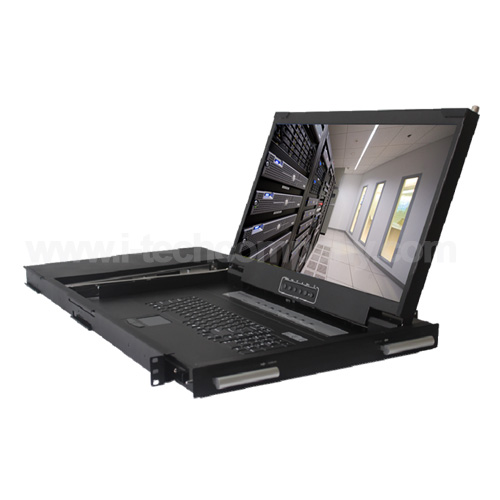

1U Rackmount 23.6" 1920 x1080 integrated with Durable 104- key keyboard and touch pad. USB (additional one USB local console) & PS2 448x42x775mm (WxHxD) / 15.5KG (Model: OHKW2300Ue)

1U Rackmount 23.6" 1920 x1080 integrated with Durable 104- key keyboard and touch pad. USB (additional one USB local console) & PS2 448x42x775mm (WxHxD) / 15.5KG (Model: OHKW2300Ue)

1U Rackmount 23.6" 1920 x1080 integrated with Durable 104- key keyboard and touch pad. USB (additional one USB local console) & PS2 448x42x775mm (WxHxD) / 15.5KG (Model: OHKW2300Ue)

OHKW2300Ue
  • Overview
  • Download
The console range of LCD console drawers provides a variety of features that simplify to access servers to making system monitoring, troubleshooting and software upgrades. The self‐locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation. Configure with 24 inch A‐Grade FHD LCD panels, combo DB15 single, 8 or 16 port integrated KVM switch & additional one USB local console

Features

• Support combo interface,VGA‐USB & VGA‐PS/2.
• Additional one USB Local console to add local KB/Mouse & VGA.
• Durable 104‐key keyboard and touch pad.
• Quick and simple installation.
• Self‐locking and auto release rails for ultra convenience.
• Port selection via push buttons or On‐Screen‐Display (OSD).
• Dedicated daisy chain port to expand up to 240 servers.





Specifications

Direct no. of Computers 1
Maximum no. of Computers 1
LCD Size 23.6”
Backlight LED
Resolution 1920*1080 FULL HD
Max.color 16.7M
Luminance 250cd/m2
View Angel (H/V) 178 / 178
Contrast Ratio 3000 : 1
Port Selection N/A
USB Local console Yes , USB x2 for KB/ Mouse , VGA x1
KB/Mouse Emulation USB & PS2
Rack Depth 500mm to 1100mm ( rack cabinet front rails to rear rails )
Power 100‐240V AC 50/60Hz via IEC Type power cord
Environment Operation temp: 0 to 50℃
Storage temp: ‐20 to 60℃
Humidity: 10% ‐ 90%, non‐condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions / Net Weights 448x42x775mm (WxHxD) / 15.5KG
Packing Dimensions / Gross weights 730*190*940mm (WxHxD) / 23KG
Accessory 1.8meter IEC Type Power Cord
