 | (This product is Non-Returnable)
Wide-screen Industrial - Grade 23.0" integrated Touch Screen LCD monitor designed for desktop and VESA arm-mount applications.
It utilizes a 23.0? (16x9)widescreen diagonal color TFT LCD as Industrial grade display and a integrated resistive touch screen as input device. Touch screen communication to CPU is RS232 or USB.
| Industrial LCD Display Specifications |
| General |
| |
Product Type |
LCD TV
|
Technology |
TFT Active Matrix |
Display size |
Diagonal: 22.9" widescreen |
Width |
22.8 in |
| Depth |
8.3 in |
Weight |
22 lbs |
| Video System |
|
|
| |
Resolution |
1280 x 1024 @ 60Hz |
| |
Image contrast Ratio |
500:1 |
| |
Pixel Pitch |
0.39 mm |
| |
Pixel Response time |
25 ms |
| |
Viewing angle |
170 degrees |
| |
Brightness |
500 cd/m2 |
| Audio System |
|
|
| |
Output mode |
Stereo |
| Television Features |
|
|
| |
Miscellaneous compliant standards |
Stereo - integrated |
| |
Additional features |
On-screen menu |
| Tuner/Channel Details |
|
|
| |
TV tuner multi-channel preview |
Split screen, Picture- in- picture (PIP), Picture-on-picture (POP) |
| Remote Control |
|
|
| |
Remote Control |
Infrared |

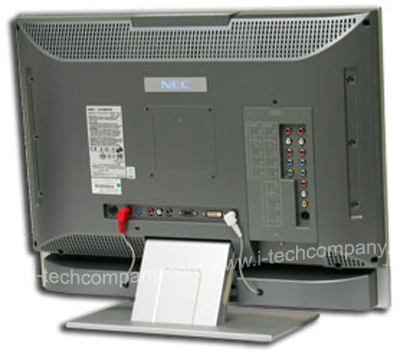

| Connections/Cables/Slots |
|
|
| |
Input/Output connections |
1 x DVI- Digital (24 pin digital DVI) - Rear,
1 x VGA input (15 pin HD D- Sub (HD- 15)) - Rear,
2 x Component video input (RCA phono x 3) - Rear,
1 x Audio line- in (Mini- phone stereo 3. 5 mm) - Rear,
1 x Composite video input (RCA phono) - Rear,
1 x S- Video input (4 pin mini- DIN) - Rear,
3 x Audio line- in (RCA phono x 2) - Rear,
1 x Audio line- out (RCA phono x 2) - Rear,
2 x Speakers output (RCA phono x 2) - Rear,
1 x Subwoofer output (RCA phono) - Rear |
| |
Cables Included |
1 x VGA cable, 1 x Audio cable |
| Power |
|
|
| |
Power device |
Power supply - External |
| |
Voltage required |
50/60 Hz |
| |
Power consumption operational |
120 Watt |
| |
Operational power consumption |
5 Watt |
| Shipping Dimensions |
|
|
| |
Width(Shipping) |
26.6 in |
| |
Depth(Shipping) |
10.5 in |
| |
Height (Shipping) |
22.9 in |
| |
Weight (Shipping) |
30.9 lbs |
Touch Screen Typical Specifications
|
COMMERCIAL Touch Screen |
INDUSTRIAL Touch Screen |
MILITARY Touch Screen |
| Mechanical |
|
|
|
| Actuation Force* |
20-500 grams |
20-500 grams |
20-500 grams |
| Actuation Travel |
0.05 mm |
0.05 mm |
0.05 mm |
| Thickness (w/o sup.) |
0.50 mm |
0.50 mm |
0.50 mm |
| Thickness (w/sup.) |
2 mm (min) |
2 mm (min) |
2 mm (min) |
| Mechanical Life |
36 million + |
36 million + |
36 million + |
|
|
|
|
| Electrical |
|
|
|
| Contact Resistance: |
|
|
|
| Open |
20 Meg Ohm |
20 Meg Ohm |
20 Meg Ohm |
| Close |
10-30 K-Ohm |
10-30 K-Ohm |
10-30 K-Ohm |
| Operating Voltage |
5 Volts |
5 Volts |
5 Volts |
| Operating Current |
5 Micro Amp |
5 Micro Amp |
5 Micro Amp |
| ESD Shield |
7 KV Min |
7 KV Min |
7 KV Min |
|
|
|
|
| Optical |
|
|
|
| Light Transmissivity: |
|
|
|
| @ 550 Nano Meters |
82%-83% |
82%-83% |
82%-83% |
|
|
|
|
| Environmental |
|
|
|
| Temperature |
|
|
|
Operating &
Non-Operating: |
0 to 35°C (32° to 95°F) |
-10° to 55°C (14° to 131°F) |
-40° to 85°C (-40° to 185°F) |
| Altitude |
|
|
|
Operating &
Non-Operating: |
12,000 meters |
12,000 meters |
12,000 meters |
| Vibration |
|
|
|
| |
0.7G @ 15 Hz |
0.7G @ 15 Hz |
0.7G @ 15 Hz |
|
1.3G @ 25 Hz |
1.3G @ 25 Hz |
1.3G @ 25 Hz |
|
3G @ 55 Hz |
3G @ 55 Hz |
3G @ 5 Hz |
| Shock |
|
|
|
| |
30G for 11 Mil. Sec. |
30G for 11 Mil. Sec. |
30G for 11 Mil. Sec. |
| * Using a .375 inch diameter RTV tip. |
