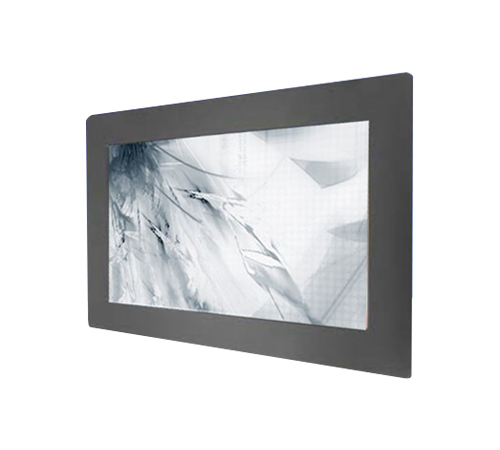

21.5" LCD IP65 Front Aluminum Panel Mount Metal Housing High Brightness PCAP Touch w/ USB Controller (Model: YPMW2150HB-F-PCAP)

21.5" LCD Industrial IP65 front Aluminum Front Panel Mount Metal Housing High Brightness PCAP Touch with USB Controller

21.5" LCD Industrial IP65 front Aluminum Front Panel Mount Metal Housing High Brightness PCAP Touch with USB Controller

Main Feature

    • Sunlight Readable.
    • Color Active Matrix Liquid Crystal Display.
    • FULL HD (1920 x 1080)
    • Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marline, transportation, gaming, gas pump.
YPMW2150HB-F-PCAP
  • Specifications
  • Download
System Specifications
Panel Type 21.5-inch TFT LCD
Screen Diagonal 21.5-inch
Active Display Area (mm) 476.64 (H) x 268.11(V)
Pixel Pitch (um) 248.25 x 248.25
Number of Pixels 1920 x 1080
Contrast Ratio 1000: 1
Color Arrangement R.G.B. Vertical Stripe
Brightness (cd/m²) 1000 cd/m²
Viewing Angle(Typ.) 178/178 (H/V)
Signal Connector 15 PIN D-Sub, DVI-D
Power Source AC100 ~ 240V, Universal +/- 10%
Power Consumption 62W Typical, normal operation
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C

AD-DB Board Specifications:

  • Small form factor 125 x 83mm.
  • TTL/Dual LVDS interface.
  • On-Screen Display control.
  • Build-in YUV to RGB color space converter and de-interlace
  • Integrated 8-bit triple-channel 210MHz ADC/PLL.
  • On chip brightness, contrast, and gamma correction.
  • Auto adjustment for frequency, phase, H/V position and white balance.
  • Embedded dual DDC can support DDC1, DDC2B
  • Flexible firmware to meet design for any custom request
  • Support various panel: VGA, SVGA, XGA, SXGA, WSXGA, WSXGA+, UXGA, WUXGA
