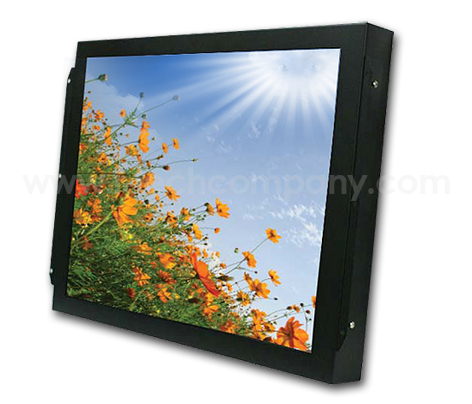

Industrial Chassis/Surface Mount Metal Housing High Brightness 21.5" LCD 1920*1080 1000nits 1000:1 with VGA input (Model: YCHR2150HB)

Industrial Chassis/Surface Mount Metal Housing High Brightness  21.5"  LCD  1920*1080  1000nits  1000:1 with  VGA input (Model: YCHR2150HB)

Industrial Chassis/Surface Mount Metal Housing High Brightness 21.5" LCD 1920*1080 1000nits 1000:1 with VGA input (Model: YCHR2150HB)

YCHR2150HB
  • Overview
  • Download

Features

  • High contrast color TFT-LCD Monitor support resolution up to 1920*1080.
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting adjustment.
  • Heavy duty monitor with steel frame.
  • Custom design by request.

Specifications

Item
Panel Type 21.5-inch TFT LCD
Screen Diagonal 21.5-inch
Active Display Area (mm) 476.64 (H) x 268.11 (V)
Pixel Pitch (um) 248.25 x 248.25
Number of Pixels Full HD (1920 * 1080)
Contrast Ratio 1000:1
Display Color 16.7M colors (RGB 6-bit + Hi_FRC )
Brightness (cd/m) 1000 cd/m
Viewing Angle(Typ.) 85/85/80/80 (R/L/U/D)
Signal Connector 15 PIN D-Sub
Power Source DC+12V(+/-10%)
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60°C
Plug & Play VESA DDC 1/2B


Touch Screen (Optional) Signal Input Color Other
N: No touch screen or glass C: VGA Only B: Black N: N/A
G: Glass D: VGA + DVI-D   R: Bracket (rear mount)
R: Resistive, RS232 E: VGA + DVI-D+Audio   S: Stand
U: Resistive, USB J: VGA + DVI-I+Audio
+ HDMI
