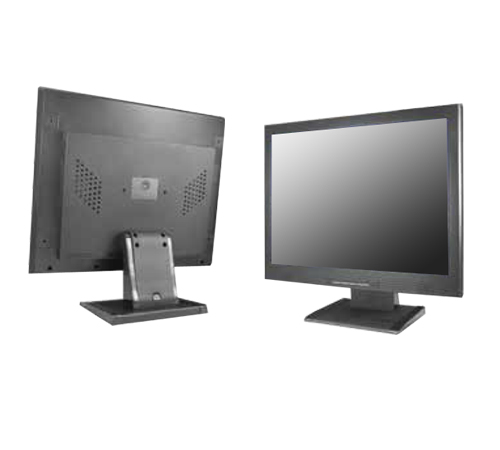

20.1" 1600x1200, CCFL-300nits, VGA, DVI, HDMI, Black Color External Power Adapter (Model: EPC2010AHB-H-MD1)

Plastic LCD Monitor, 20.1"-1600x1200, CCFL-300nits,VGA+DVI+HDMI, Black Color External Power Adapter, Power Code: Italy

Plastic LCD Monitor, 20.1"-1600x1200, CCFL-300nits,VGA+DVI+HDMI, Black Color External Power Adapter, Power Code: Italy

Main Feature

    • Elegant design with slim bezel
    • Integrated amp and stereo speakers give you a complete multimedia experience
    • Brilliant color and crystal-clear images and text
Inquiry/Quote Request
EPC2010AHB-H-MD1
  • Overview
  • Specifications
  • Download

Features:
  • Elegant design with slim bezel
  • Integrated amp and stereo speakers give you a complete multimedia experience
  • Brilliant color and crystal-clear images and text


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 20.1" viewable diagonal area
Active Area / Pixel Pitch 408.24(H) x 306.18(V) mm / 0.2916(H) x 0.2916(V) mm
Native Resolution / Colors 1600(H) x 1200(V) / 16.7 Million
Brightness / Contrast 300 cd/m2 (typ) / 1000 : 1
Response Time ≦ 5 ms
Viewing Angle (typical) H. 170° (- 85° ~ + 85°) , V. 160° (- 80° ~ + 80°)
Light Source LED , Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA, 1 x HDMI, 1 x DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 100 x 100 mm)
Power 12V DC-IN with external adapter
Power Consumption Operation / Power Saving 40 watt , < 5 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical With Base(W x H x D) : 460.0 x 453.42 x 190.0 mm
Without Base(W x H x D) : 460.0 x 380.0 x 58.6 mm
Carton W x H x D = 560 x 463 x 205 mm
Weight N.W. / G.W. 6.7 Kgs / 7.7 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Enhanced Panel Video / TV Others
Panel with LED backlight DVI Digital Signage(Stand alone)
High brightness panel HDMI Motion Sensor
Wide Temperature SV + AV + TV Light Sensor
Sun Light Readable   Auto-Dimming
