20" Industrial Touch LCD Monitor w/ Serial Controller (Model:CCH2000-TRS )

20" Wide-Screen Industrial Grade LCD Integrated Touch Screen w/ Serial Controller(Model:CCH2000-TRS )

20" Wide-Screen Industrial Grade LCD Integrated Touch Screen w/ Serial Controller(Model:CCH2000-TRS )

CCH2000-TRS
  • Overview
  • Download

Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

(This product is Non-Returnable)

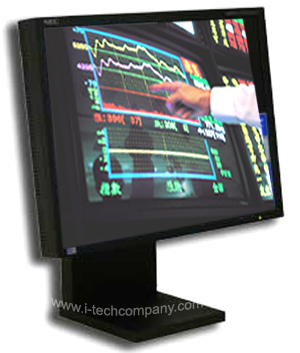

Wide-screen Industrial - Grade 20.0" integrated Touch Screen LCD monitor designed for desktop and VESA arm-mount applications.

It utilizes a 20.0" widescreen diagonal color TFT LCD as Industrial grade display and a integrated resistive touch screen as input device. Touch screen communication to CPU is RS232 or USB.

Industrial LCD Display Specifications
LCD

Display Type
Active Matrix TFT LCD Display
Display Area
Diagonal: 20.1" widescreen
Pixel Pitch
0.255mm
Resolution
1600 x 1200 @ 60 Hz
Brightness 250 cd/m2
Contrast Ratio
400:1
Viewing Angle
176° (Vertical), 176° (Horizontal)
Response Time
16 ms
Cabinet
  Color Black
Signal Input

Input Video
Signal
Analog RGB
Digital DVI-I, DVI-D

Video Level
Analog 0.7 Vp-p/75 Ohms

Frequency
Horizontal: 31.5 kHz to 91.1 kHz
Vertical: 50.0 Hz to 85.0 Hz

Sync Type
Separate sync: TTL level (Positive/Negative)
Composite sync: TTL level (Positive/Negative)

Input Connectors
1 x VGA - 15 pin HD D-Sub (HD-15)
1 x DVI-I - 29 pin combined DVI
1 x DVI-D - 24 pin digital DVI

Included Signal
Cable
1 x DVI-A to DVI-D
1 x DVI-D to DVI-D
Power Requirements

Voltage
AC 110/240 V ( 50/60 Hz )

Consumption
On: 54W
Power Savings Mode: <1W
Operating Conditions
  Temperature +41° F to +95° F
  Humidity 30% to 80%
Misc. Features
  Plug & Play VESA DDC2B & 2Bi
Dimensions (H x W x D)
  Unit 14.1"- 19.5" x 17.4" x 7.9" (w/ stand)
13.4" x 17.4" x 3.5"(w/o stand)
Weight

Unit
23.1 lbs. (w/ stand)
15.4 lbs. (w/o stand)


Touch Screen Typical Specifications
COMMERCIAL Touch Screen  INDUSTRIAL Touch Screen MILITARY Touch Screen
Mechanical
 Actuation Force* 20-500 grams 20-500 grams 20-500 grams
 Actuation Travel 0.05 mm 0.05 mm 0.05 mm
 Thickness (w/o sup.) 0.50 mm 0.50 mm 0.50 mm
 Thickness (w/sup.) 2 mm (min) 2 mm (min) 2 mm (min)
 Mechanical Life 36 million + 36 million + 36 million +
 Electrical
Contact Resistance:
     Open 20 Meg Ohm 20 Meg Ohm 20 Meg Ohm
     Close 10-30 K-Ohm 10-30 K-Ohm 10-30 K-Ohm
Operating Voltage 5 Volts 5 Volts 5 Volts
Operating Current 5 Micro Amp 5 Micro Amp 5 Micro Amp
ESD Shield 7 KV Min 7 KV Min 7 KV Min
Optical
 Light Transmissivity:
 @ 550 Nano Meters  82%-83% 82%-83% 82%-83%
Environmental
 Temperature
        Operating &
Non-Operating:
0 to 35°C (32° to 95°F) -10° to 55°C (14° to 131°F) -40° to 85°C (-40° to 185°F)
 Altitude
         Operating &
Non-Operating:
12,000 meters 12,000 meters 12,000 meters
 Vibration
  0.7G @ 15 Hz 0.7G @ 15 Hz 0.7G @ 15 Hz
1.3G @ 25 Hz 1.3G @ 25 Hz 1.3G @ 25 Hz
3G @ 55 Hz 3G @ 55 Hz 3G @ 5 Hz
 Shock
  30G for 11 Mil. Sec. 30G for 11 Mil. Sec. 30G for 11 Mil. Sec.
 * Using a .375 inch diameter RTV tip.
Installation Manual
Windows Mac Linux

Windows 2K/XP

Windows 9X/ME

Mac

Windows NT 4.0

DOS

Linux

Windows CE
Click for download driver
