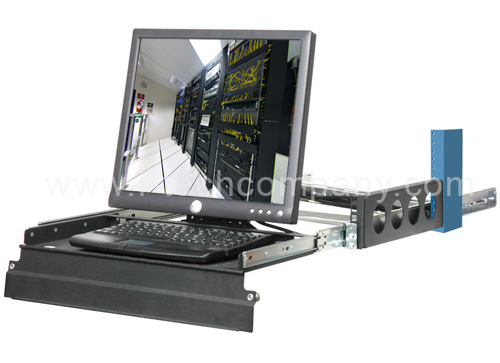

The rackmount monitor kit allows you to install a standard, flat panel monitor into a rack in a cost efficient manner. The kit supports flat panel monitors with 75 mm or 100 mm hole patterns. The rackmount monitor kit may be installed in racks with an installation depth from 15.5" - 31.5" (394 - 800 mm). Compatible with most KVM switches. USB conversion cable is included.

Monitor, keyboard, trackpad

• 17 - 19" monitors available
• Use your own 15 - 19" VESA monitor
• Space saving trackpad
• Compatible with KVM switches, USB, PS/2

Install in any 2Post, 19" rack

• 10-32 or 12-24 threaded holes
• Mounting depth from 15.5 - 31.5" (394 - 800 mm)
• 2Post option for center or flush mount
• Cable management arm included

Features

Specifications

Interface	PS/2 and VGA interface available from KVM Switch
Rack Units	2U
Rack Type	2Post center mount 2Post flush mount
Rack Type	2Post
Included Hardware	10-32 and 12-24 Screws Cage nuts provided for square hole racks
Mounting Depth Range	15.5" to 31.5" (394 - 800 mm)
Rail Type	28" travel (394 mm) Ball bearing slides
Overall Installation Depth	31" Minimum (787 mm)
Cable Management	Articulated cable management arm
VESA Mount	100 mm or 75 mm VESA hole patterns (required) Most LCD display have a four hole VESA mounting holes on the back The VESA holes may be hidden by the display stand
Monitor Width	LCD display width: 17.5" (444.5 mm) maximum 15", 17" or 19" (381 mm, 432 mm or 483 mm) LCD displays typically fit
Monitor Thickness	LCD display thickness: 2.75" (70 mm) maximum Exceeding this thickness will require more than 2U of rackmount space
Monitor Specs	17” (432 mm) monitor specs Monitor is Dell E170S (optional) Height 15" Width 14.8" 1280 x 1024 pixels @ 60Hz max resolution TFT active matrix 250 cd/m² brightness 800:1 image contrast ratio Signal input VGA 19” (483 mm) monitor specs Dell E190S (optional) Height 16.2" Width 16.3" 1280 x 1024 pixels @ 75Hz max resolution TFT active matrix 300 cd/m² brightness 800:1 image contrast ratio Signal input VGA
Keyboard Specs	PS/2 or USB USB Interface requires the use of an included adapter 88/89 Keys have the functionality of a 104/105 rack mount keyboard Embedded numeric keypad and 12 dedicated function keys
Assembly Notes	Fully assembled except for optional monitor
