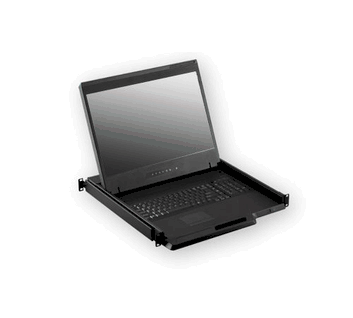

1U 19" 16-Ports CAT 5 KVM (RJ45 Connection), Local Console 104 Key Notepad KB w/ Touchpad (Ne), 22.85" Deep (Model: NW119C16e)

1U 19" Widescreen 1440x900, 16-Ports CAT 5 KVM, Local Console 104 Key Notepad Keyboard w/ Touchpad (Ne), CAT.5 KVM (RJ-45 Connection), Local Console, 22.85" Deep

1U 19" Widescreen 1440x900, 16-Ports CAT 5 KVM, Local Console 104 Key Notepad Keyboard w/ Touchpad (Ne), CAT.5 KVM (RJ-45 Connection), Local Console, 22.85" Deep

NW119C16e
  • Overview
  • Specifications
  • Download
Welcome to the cutting-edge solution for streamlined server management - the 1U Rackmount Wide LCD KVM Drawer NW119C16e, exclusively available at i-Tech Company. Designed to optimize space utilization and enhance operational efficiency, this innovative KVM drawer integrates high-resolution display technology with comprehensive KVM functionality. Whether you're overseeing a data center, a server room, or a network operation center, the NW119C16e offers unparalleled convenience and performance in a compact form factor. Explore its features and elevate your server management experience today.


Features:

  • 1U 19-inch widescreen LCD console drawer
  • Native resolution of 1440 x 900 and supports 16.7 million colors
  • Includes a 104-key USB keyboard with either touchpad
  • Easy one-person installation setup
  • Features an updated sleek design with a molded front handle
  • Standard 2-year warranty with the option to upgrade up to 5 years.


Options

  • Dual stereo speakers for HDMI ( HS4.4 )
  • DVI-D + Audio input & output + Speakers ( DV4.4 )
  • S-Video + Composite + Speakers ( BNC )
  • 3G / HD / SD-SDI Broadcast-grade input + Speakers ( SDI )
  • Front USB hub port for device access ( USB )
  • DC power : 12V / 24V / 48V / 125V / 250V
  • SUN Micro keyboard option
LCD Panel
Panel size ( diagonal ) 19"
Native resolution 1440 x 900
Brightness ( cd/m² ) 250
Contrast ratio ( typ. ) 1000 : 1
Colors 16.7 M
Viewing angle ( L/R/U/D ) 85/85/80/80
Response time ( ms ) 5
Dot pitch ( mm ) 0.2835
Display area ( mm ) 408.24H x 255.15V
Surface treatment Anti-glare
Surface hardness 3H
Backlight type LED
MTBF (hrs) 30,000

Mounting Distance
Console w/ KVM drawer 470 ~ 800 mm
18.5 ~ 31.5 inch

Audio Option
Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Dual stereo 2W x 2

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
(console / KVM)
Screen on Max. 20W / Max. 55W
Power saving mode Max. 2W / Max. 34W
Power button on Max. 1W / Nil

Video Option
Digital DVI-D DVI-D single link
Analog S-Video ( 4-pin ) NTSC & PAL
Composite ( BNC ) NTSC & PAL

Environment
Operating temp. 0   to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 10~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

Compliance
EMC FCC & CE
Safety CE / LVD & UKCA
Environment REACH & RoHS3 / WEEE

Physical
Dimensions: ( W x D x H ) Console w/ KVM 442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
Packing: ( W x D x H ) Console w/ KVM 590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch
Net weight Console w/ KVM 12.5 kg / 28 lb
Gross weight Console w/ KVM
18.1 kg / 39.8 lb


KVM Specifications

KVM Port
Number of ports : 16
Connector : RJ-45
Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
Local Console : Nil for LCD console drawer version
Management
Multilingual OSD : English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey combination : Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security : Password enable & disable, up to 8 users profile for port access
PC Selection : Front button, OSD menu & hotkey
Expansion: Up to 256 servers by 8-level cascade
Compatibility
Hardware : HP    / IBM / Dell PC, Server and Blade Server SUN / Mac
OS Support : Windows / Linux / Unix / Mac OS
Power
Input : Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC : 12V / 24V / 48V / 125V DC input
Consumption : Max. 11W
Compliance
EMC : FCC & CE
Safety : CE / LVD & UKCA
Environment : RoHS3 & REACH / WEEE
Environmental Operating Storage / Non-operating
Temperature : 0 to 55°C degree -20 to 60°C degree
Humidity : 10~90%, non-condensing         5~90%, non-condensing
Altitude : 16,000 ft                                  40,000 ft
Shock : - 10G acceleration (11ms duration)
Vibration : - 10~300Hz 0.5G RMS random vibration
