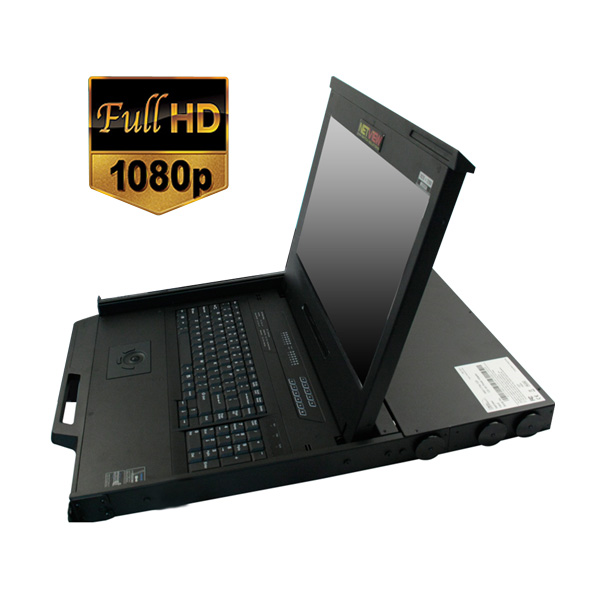

1U 17.3" Full HD LCD console drawer 8-ports USB RGB KVM switch, 104 key notepad KB with touchpad (Model: NW117HD-B8e)

1U 17.3" widescreen Full HD 1920 x 1080 LCD console drawer 8-ports USB RGB KVM switch (Includes 8 pcs 6ft long NB-6 Cables) and 2 x USB 2.0 port sharing USB peripheral for computers, with 104 key notepad keyboard w/ Touchpad (e), 18 inch Deep

1U 17.3" widescreen Full HD 1920 x 1080 LCD console drawer 8-ports USB RGB KVM switch (Includes 8 pcs 6ft long NB-6 Cables) and 2 x USB 2.0 port sharing USB peripheral for computers, with 104 key notepad keyboard w/ Touchpad (e), 18 inch Deep

Main Feature

  • 1U 17.3" widescreen LCD console drawer
  • Support Full HD with 1080p resolution
  • 104-key keyboard with either touchpad or trackball
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
  • Short depth design of 460mm (18 inch) Deep
NW117HD-B8e
  • Specifications
  • Download
  • Contact Sales

LCD Specifications

LCD Panel
Diagonal size 17.3" widescreen TFT
Max. Resolution 1920 x 1080
Brightness (cd/m2) 300
Backlight LED
Colors 16.7M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing Angle (H/V) 178° x 178°
Active area (mm) 382 x 215
MTBF (hrs) 15,000
Casing Color Black ( RAL 9005 )
Weight ( Single console )
Net 10.8 kgs ( 24 lbs )
Gross 15.8 kgs ( 34.8 lbs )
Environmental
Operating 0 to 55°C Degree
Storage -20 to 60°C Degree
Relative humidity 5~90%, non-condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory FCC, CE & CCC certified
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product 441.6 x 584.2 x 44 mm / 17.4 x 23 x 1.73 inch
Packing 589.28  x 762 x152.4 mm / 23.2 x 30 x 6 inch


USB Hub DB-15 KVM Benefits

  • VGA-USB DB-15 KVM with either 8 or 16 ports in 1U
  • 2 x USB 2.0 port sharing USB peripheral for computers
  • Mix USB & SUN with Multi-Platform switch capability
  • Support resolution up to 1920 x 1080
  • SUN 1152 x 900 resolution compatible
  • Hot pluggable, no software or divers required
  • Easy & quick installation
Note: No Daisy chain function on USB Hub KVM model



Switch Features & Options

  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • 12V, 24V and 48V DC Power options



KVM Specifications

KVM Port
Number of ports: 8 or 16
Connector: DB-15 combo connector
Connectivity: Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet
Local Console
Graphic Connector: 1 x DB-15
Resolution: Up to 1920 x 1200
Input device: 2 x USB type A for keyboard & mouse
USB hub: 2 x USB type A for sharing other peripheral devices among the computers
Management
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey Combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security: Password enable & Disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & Hotkey
Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix
Power
Input: Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC: 12V / 24V / 48V DC input
Consumption: Max. 12 Watt, Standby 5 Watt
Regulatory :
Safety: FCC & CE certified
Environment: RoHS2 & REACH compliant
Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58-100Hz / 0.98G (11ms / cycle)
Product Information
Dimension (W x D x H): 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch
Net weight: 3 kg / 6.5 lb
Packing Information
Dimension (W x D x H): 500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch
Gross weight: 5 kg   / 11 lb
