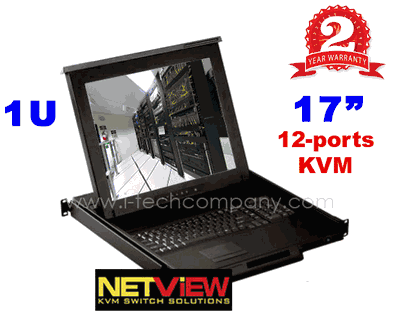

1U Rackmount 17” TFT SAMSUNG LCD Monitor w/notebook keyboard & touch-pad mouse Drawer, with 12-port DVI + Audio KVM switch, with 104 key notepad keyboard w/ Trackball ( b ), with NC-6: 6pc 6ft long DVI +USB+ Audio KVM Cables. 22.8" Deep only (Model: NVP117-D12e)

1U Rackmount 17” TFT SAMSUNG  LCD Monitor w/notebook keyboard & touch-pad mouse Drawer, with 12-port DVI + Audio KVM switch, with 104 key notepad keyboard w/ Trackball ( b ), with NC-6:  6pc 6ft long DVI +USB+ Audio KVM Cables. 22.8" Deep only (Model: NVP117-D12e)

1U Rackmount 17” TFT SAMSUNG LCD Monitor w/notebook keyboard & touch-pad mouse Drawer, with 12-port DVI + Audio KVM switch, with 104 key notepad keyboard w/ Trackball ( b ), with NC-6: 6pc 6ft long DVI +USB+ Audio KVM Cables. 22.8" Deep only (Model: NVP117-D12e)

NVP117-D12e
  • Overview
  • Download
Part no. NVP117-D12e/NVP117-D12b
Video:

Drawer Features & Display Benefits:
  • 1U 17" or 19" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm and 500mm respectively
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available

Options:
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 48V, 24V or 12VDC power

Designed for:

BNC + S-Video DVI-D DC Power Audio Touchscreen

BNC + S-Video Audio

DVI-D Touchscreen - USB

DC Power Touchscreen - Serial

**With touchscreen option, the height of NVP117 / NVP119 will be changed from 1U to 1.5U

KVM Port Connection:




Monitor Grade A 15", 17" or 19" industrial TFT LCD panel

LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
250
250
Backlight
CCFL
CCF
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
12 kgs
( 26 lbs )
12.7 kgs
( 27.9 lbs )
Gross
16.6 kgs
( 36.5 lbs )
17.3 kgs
( 38.1 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory cUL, FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
NVP117
441.6 x 460 x 44 mm / 17.4 x 18.1 x 1.73 inch
NVP119
441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch


Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port


Keyboard Selection:

Supporting layouts



Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)

Net
Weight
Gross
Weight
NVP117
441.6 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
13 kgs
( 28.6 lbs )
19 kgs
( 41.8 lbs )
NVP119
441.6 x 620 x 44 mm
17.4 x 24.4 x 1.73 inch
590 x 823 x 140 mm
23.2 x 32.4 x 5.5 inch
13.7 kgs
( 30.1 lbs )
19.7 kgs
( 43.3 lbs )

KVM Selections :
(X) Stands for 17" or 19" LCD size
Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
NVP11X - MC1116
NVP11X - MC1132
1
1
2
-
NVP11X - MC2116
NVP11X - MC2132
1
1
0
-
NVP11X - MC0116
NVP11X - MC0132
1
2
0
-
NVP11X - MC0216
NVP11X - MC0232
1
3
0
-
NVP11X - MC0316
NVP11X - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP11X - CIP8
NVP11X - CIP16
NVP11X - CIP32
1
1
0
NVP11X - CCE8
NVP11X - CCE16
NVP11X - CCE32
1
0
0
NVP11X - C8
NVP11X - C16
NVP11X - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
NVP11X - M118
NVP11X - M1116
-
1
1
2
NVP11X - M218
NVP11X - M2116
-
1
1
0
NVP11X - M018
NVP11X - M0116
-
1
2
0
NVP11X - M028
NVP11X - M0216
-
1
3
0
NVP11X - M038
NVP11X - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVIP11X - 82
NVP11X - 162
-
1
1
0
NVP11X - CE8
NVP11X - CE16
-
1
0
0
NVP11X - S801
NVP11X - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
NVP11X - D12
DVI-D KVM Cable : NC-6 / 15 ( 6 or 15 ft )

USB Hub DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVIP11X - 82H
NVP11X - 162H
-
1
1
0
NVP11X - CE8H
NVP11X - CE16H
-
1
0
0
NVP11X - 801H
NVP11X - 1601H
-
USB KVM Cable : NB-6 / 10 / 15 ( 6, 10 or 15 ft )
