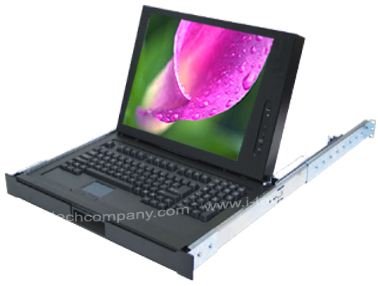

Features
• Provides display and keyboard with two button touchpad in 1U of rack space for 19” racks.
• Mounted with included smooth action ball bearing slides which lock in the extended position.
• Display powers off preserving back light life when tilted down for sliding into the rack.
• Retainer and lock options to keep unit contained in the rack when not in use.
• Housed in rugged steel construction with a durable powder coat finish.
• Display surface protected by a clear unbreakable Lexan™ covering.
Comes with
- (1) RCK1 Series KVM drawer unit
- (1) 3-in-one KVM cable, 6-feet
- (2) Rear extension mounting brackets
- (8) Mounting screws for rear extension mounting brackets
- (4) Fasteners
- (1) Power cord
- (1) Power Adapter 110/220V
| Options |
| Keyboard |
Cherry KB w/ Touchpad
Std KB w/ Illuminated trackball
Std KB w/ touchpad |
| Speakers |
No |
| Video |
No |
| Front Panel |
Front Panel + retainer screws
Front panel + lock
Front panel + lock + retainer screw |
| Display Specification |
Display Type: |
Active matrix TFT LCD |
Colors: |
16.7 million colors |
Contrast Ratio: |
400:1 typ. |
Brightness: |
250 cd/m 2 typ. |
Viewing Angle: |
130 o (H) / 100 o (V) |
Response Time: |
25ms (typ.) |
Resolution: |
640 x 350
640 x 480
800 x 600
1024 x 768 |
Display Area: |
15?Diagonal |
Horizontal Frequency: |
31.47 to 68 KHz |
Vertical Frequency: |
60 to 85 Hz |
|
| General Specifications |
Dimensions: |
19.0?W)x1.75?H)x23.50?D) |
Weight: |
27 lbs. |
Power (TFT Display): |
90 ?260 VAC, 50/60 Hz
60 Watts maximum |
On-Screen Controls: |
Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Load and Save Values |
Plug & Play: |
DDC1 and DDC2B |
Temperature: |
Operating: 0 to 50°C
Storage: -20 to 60°C |
Humidity: |
10 to 85% RH (max) |
Input Signal (VGA) |
RGB analog video, TTL H & V sync |
Input Connector: |
Display: 15-pin mini D-Shell |
Colors Available: |
Standard black (B) or Light Gray |
|
| Keyboard and Touchpad Specifications |
Rollover: |
Alpha N-key rollover |
Auto repeat: |
Yes. |
Self Diagnostics: |
At power on & system reset |
Data Buffer: |
All codes buffered before sending |
Operating voltage: |
+5 VDC +/- 5% |
Operating current: |
200 mA max. |
Touchpad Size: |
2.2?x 1.6? |
Buttons: |
Left and Right |
Interface: |
Keyboard: PS/2 or USB (u)
Touchpad: PS/2 or USB (u) |
Compatibility: |
DOS, Windows 3.X, Windows 95/98, Windows NT, Windows 2000,XP. ( Specifications to change without notice ) |
|
