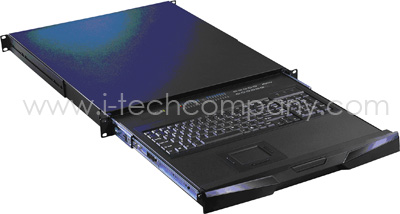

1U Keyboard / KVM Drawer (Model: NK1)

1U Keyboard / KVM Drawer (Model: NK1)

1U Keyboard / KVM Drawer (Model: NK1)

Overview
Download

Keyboard Drawer Benefits:

Enhanced aesthetics with new moulded front panel and two point lock
Combo interface either PS/2 or USB input
Multiple keyboard language selections with touchpad or trackball

With KVM Options :

Multi-user Matrix Cat6 KVM with either 16 or 32 ports in 1U
Cost efficient Combo KVM integration
Mix PS/2 & USB with multi-platform switch capability
Secure remote user access across the world wide web

Matrix KVM 8, 16, 32 port button

Matrix KVM 8, 16, 32 port button

Combo KVM 8, 16, 32 port button

Keyboard Selection:

Supporting layouts

e keyboard
with touchpad

b keyboard
with trackball

d compact keyboard
with trackball

t compact keyboard
with touchpad

Dimensions:

Model	Product Dimension (W x D x H)	Packing Dimension (W x D x H)	Net Weight	Gross Weight
NK1 Series	442 x 550 x 44 mm 17.4 x 21.2 x 1.73 inch	581 x 705 x 175 mm 22.9 x 27.8 x 6.9 inch	8 kg / 18 lbs	12 kg / 26 lbs

KVM Selections:

Base Model		NK1 Keyboard Drawer Series
• Single port w/o KVM • Combo interface		NK-1

Matrix CAT6 KVM
	2 consoles	Matrix Cat6 16 port	NK1 - MC0116
	3 consoles		NK1 - MC0216
	4 consoles		NK1 - MC0316
	3 consoles	Matrix Cat6 16 port	NK1 - MC1116
	4 consoles		NK1 - MC1216
	4 consoles		NK1 - MC2116

	2 consoles	Matrix Cat6 32 port	NK1 - M0132
	3 consoles		NK1 - M0232
	4 consoles		NK1 - M0332
	3 consoles	Matrix Cat6 32 port	NK1 - M1132
	4 consoles		NK1 - M1232
	4 consoles		NK1 - M2132

Matrix DB-15 KVM

	2 consoles	Matrix DB-15 8 port	NK1 - M018
	3 consoles		NK1 - M028
	4 consoles		NK1 - M038
	3 consoles	Matrix DB-15 8 port	NK1 - M118
	4 consoles		NK1 - M128
	4 consoles		NK1 - M218

	2 consoles	Matrix DB-15 16 port	NK1 - M0116
	3 consoles		NK1 - M0216
	4 consoles		NK1 - M0316
	3 consoles	Matrix DB-15 16 port	NK1 - M1116
	4 consoles		NK1 - M1216
	4 consoles		NK1 - M2116

Combo CAT6 KVM

	1 consoles	Combo CAT6 8 port	NK1C8
	2 consoles		NK1CCE8
	2 consoles		NK1CIP8
	1 consoles	Combo CAT6 16 port	NK1C16
	2 consoles		NK1CCE16
	2 consoles		NK1CIP16
	1 consoles	Combo CAT6 32 port	NK1C32
	2 consoles		NK1CCE32
	2 consoles		NK1CIP32

Combo DB-15 KVM

	1 consoles	Combo DB-15 8 port	NK1S8
	2 consoles		NK1CE8
	2 consoles		NK1IP8
	1 consoles	Combo DB-15 16 port	NK1S16
	2 consoles		NK1CE16
	2 consoles		NK1IP16

	1 Console	DB-15	4 port	NK1 - 401
			8 port	NK1 - 801
			16 port	NK1 - 1601
