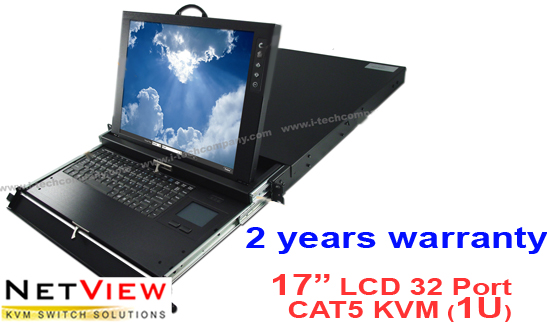

1U Dual Slides Rackmount 17" KVM Keyboard LCD Monitor CAT5 32-port KVM Over IP Switches (Model:NVP1710-CIP32)

1U Dual Slides Rackmount 17" KVM Keyboard LCD Monitor w/ 32-Port CAT5 KVM Over IP Switches

1U Dual Slides Rackmount 17" KVM Keyboard LCD Monitor w/ 32-Port CAT5 KVM Over IP Switches

  • Overview
  • Download
Product discontinues. call us 888-483-2418 for replace items.

LCD and KVM Fearures Option
LCD and KVM Specifications Accessories
Diagram Picking list
Mechanical Drawing Order information


Connect your IP Cat5 KVM


LCD Features

  • Only 1U (1.75" high) of vertical 19" rack-mount space.
  • Laptop-style tilting display provides for short pull-out and minimal intrusion into the aisle space in front of the rack.
  • High-brightness 300-nit,TFT LCD Panel and high contrast-ration active TFT LCD flat panel integrated folding display.
  • 17" display supporting 1280 x 1024 resolution.
  • Full 101-keys Windows keyboard (including a dedicated numeric keypad), and an integrated touch-pad pointing device.
  • Industrial-grade heavy-duty steel construction with a built-in lock to prevent unauthorized console access.
  • Smooth-operating sliding rails that self-lock when pulled all the way out.
  • Built in power supply
  • Adjustable rear mounting support, up to 34-inches in depth.
  • Built-in thumb screws for securing the unit when folded and pushed all the way in.
  • Meets EIA310c & IEC-3 Specifications
  • Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs

IP Cat5 KVM Features

  • High density Cat5 KVM with either 16 or 32 ports in 1U
  • Increased distance of 40m between your server & KVM switch
  • Enhanced rear cable management using Cat5 cords
  • Mix PS/2, USB & SUN with Multi- Platform switch capability
  • Secure remote user access across the world wide web
  • Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
  • Greater distances between your switch and servers allow enhanced data centre rack layouts
  • Traditional Cat5 cords, when compared to coaxial cables, provide simple cable management
  • Mix legacy PS/2 servers with newer USB and SUN solutions
  • 128 bit secure browser based user access from anywhere in the
  • world over IP
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover
  • 12, 24 and 48 volt DC power options

Designed for:


LCD Specification

Panel Samsung 17" LCD Panel
Screen Type TFT
Display Area 337.92(H) x 270.34(V) mm
Contrast Ratio 500 : 1
Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.2M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Horizontal Synchronization 64 - 80 KHz (Typ.)
Vertical Synchronization 60 - 75 Hz (Typ.)
Input Signal Analog RGB 0.7Vp-p
Power Management
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save
External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector


KVM Technical Specification

KVM Port
Number of ports : 16or32
Connector: RJ-45
Connectivity: USB type or PS/2 type dongle, up to 40 meter ( 130 feet)
Local Console
Graphic connector: HDDB15-pin
Resolution: Up to 1600x1200
Input device: 2 x USB type A for keyboard & mouse
IP Remote Console
Connector: RJ45 ethernet
User management: 15-user login, 1 x active user
Network protocol: DHCP / BOOTP / DNS
Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR
Resolution: 1600x1200
Browser: IE, Firefox, Safari, Netscape
Others: Serial port, virtual media via USB
Expansion :
  Up to 256 servers by 8-level cascade
Multi-platform Mix PCs, SUNs, IBMs, HPs, DELLs Server
:Support: Windows Vista, 2003 / XP / 2000, Linux, Netware, Unix
Input: 100-240VAC, 50 or 60Hz, IEC type cord
Option DC : 12V/24V/48V DC input
Consumption : Max. 25 Watt
Regulatory Approval

Operating : 0 to 50"C
Storage: -10 to 60-C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11 ms, half-sine wave)
Vibration : 58~100Hz / 0.98G (11 min / cycle)


Mechanical drawing


High Density IP Cat5 KVM

Expanding its range of server management solutions NetView introduces its new high density IP console 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.

Secure Remote IP Access
A second user can work securely via a remote Keyboard, monitor and mouse across the World Wide Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC's but provides seamless secure access over IP via a web browser. Secure IP access allows the ultimate server control even to BIOS level of your infrastructure.

Enhanced User Interface
The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles / access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.

Remote access via browser IP access up to BIOS level



(Click "OPTION" tab above to customize or call 1-888-483-2418 for detail):



KVM Accessories

USB dongle PS/2 dongle 6ft cascade cable Cat5 cable
3ft, 6ft, 10ft & 15ft


Picking list

  • (2) Rear extension mounting brackets
  • (8) Mounting screws for rear extension mounting brackets
  • (4) Fasteners
  • (1) Power cord
  • (1) Power Adapter 110/220V


Ordering Information

KVM Support
15" LCD series
17" LCD series
19" LCD series

2 Consoles
32 port NVP115CIP32 NVP117CIP32 NVP119CIP32
16 port NVP115CIP16 NVP117CIP16 NVP119CIP16
NVIP11582 NVIP11782 NVIP11982
NVIP115162 NVIP117162 NVIP119162
NV11582 NV11782 NV11982
NV115162 NV117162 NV119162
NV11582U NV11782U NV11982U
NV115162U NV117162U NV119162U

32 port NVP115C32 NVP117C32 NVP119C32
16 port NVP115C16 NVP117C16 NVP119C16
