Main Feature

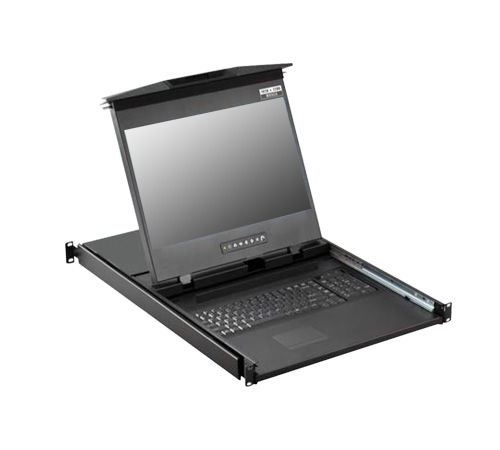

    • 1U 16.2" LCD console drawer
    • Dual slide - LCD and keyboard slide independently
    • 1920 x 1200 WUXGA native resolution / 16.7M colors ( 8-bit )
    • DVI-D + VGA video input / USB KB / MS
    • 104-key keyboard with touchpad
    • One Man installation design
    • Enhanced aesthetics with molded front handle and two point lock
    • 2-year standard warranty ( upgradable up to 5 years )
DRX117e
  • Overview
  • Specifications
  • Ordering Information
  • Download
  • Contact Sales

Benifits:

  • 1U 16.2" LCD console drawer
  • Dual slide - LCD and keyboard slide independently
  • 1920 x 1200 WUXGA native resolution / 16.7M colors ( 8-bit )
  • DVI-D + VGA video input / USB KB / MS
  • 104-key keyboard with touchpad
  • One Man installation design
  • Enhanced aesthetics with molded front handle and two point lock
  • 2-year standard warranty ( upgradable up to 5 years )

Options:
  • HDMI 1.4 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • DC power : 12V / 24V / 48V / 125V
  • MAC or SUN Micro keyboard options available
Console Port
Video input VGA + DVI-D single link
KB / MS USB interface
VGA console 6ft cable : NB-6
or
Drawer end : DB-15 + USB type A x 2 Server end : DB-15 + USB type A x 2
DVI-D console 6ft cable : CNX-6 Drawer end : DVI-D + USB type A x 2 Server end : DVI-D + USB type A x 2

Video Option
Digital HDMI HDMI 1.4 / HDCP 1.4

Mounting Distance
Single console drawer
Console w/ KVM drawer
660 ~ 870 mm 26 ~ 34.3 inch

LCD Panel
Panel size ( diagonal ) 16.2"
Native resolution 1920 x 1200
Brightness ( cd/m² ) 300
Contrast ratio ( typ. ) 800 : 1
Colors 16.7 M, 8-bit
Viewing angle ( L/R/U/D ) 89/89/89/89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 20,000

Audio Option
Input Connector 3.5mm stereo jack
Impedance / Power level 30kQ / 750mV
Output Connector 3.5mm stereo jack
Resistance / Power level 30kQ / 2.8V
Speaker Dual stereo 2W x 2

Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption (console / KVM) Screen on Max. 34W / Max. 59W
  Power saving mode Max. 4W / Max. 29W
  Power button off Max. 1W / Nil

Physical
Product
( W x D x H )
 Single console 442 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch
   Console w/ KVM 442 x 650 x 44 mm 17.4 x 25.6 x 1.73 inch
Packing
( W x D x H )
Single console / Console w/ KVM 590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch
Net weight   Single console 12 kg / 26.4 lb
Console w/ KVM 13 kg / 28.6 lb
Gross weight   Single console 18 kg / 39.6 lb
Console w/ KVM 19 kg / 41.8 lb

Environment
Operating temp. 0 to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

Compliance
EMC FCC, CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

For keyboard option add (e) touchpad or (b) trackball at the end of the model no.
Sample: DRX117-MIP813e
Matrix
DB-15 KVM
Local Remote IP   8-port 16-port 32-port
1 1 1 DRX117 - MIP813 DRX117 - MIP1613 -
1 1 2 DRX117 - MIP824 DRX117 - MIP1624 -
1 1 0 DRX117 - M802 DRX117 - M1602 -
1 2 0 DRX117 - M803 DRX117 - M1603 -
1 3 0 DRX117 - M804 DRX117 - M1604 -

Combo
DB-15 KVM
Local Remote IP   8-port 16-port 32-port
1 0 1 DRX117 - IP802 DRX117 - IP1602 -
1 1 0 DRX117 - 802 DRX117 - 1602 -
1 0 0 DRX117 - S801 DRX117 - S1601 -
Combo DB-15 KVM Cable : CE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D
KVM
Local     Remote IP   12-port - -
1 0 0 DRX117 - 1201D - -
DVI-D KVM Cable : CI-6 /15 ( 6 or 15 ft )
