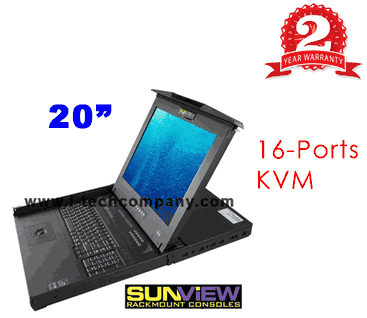

1U Rack Mount 20" SUN LCD Monitor Combo KVM Keyboard Drawer w/ 16-Ports switches and Touch Pad (Model: SNK120S16e)

1U Rack Mount 20" SUN LCD Monitor Combo KVM Keyboard Drawer w/ 16-Ports switches and Touch Pad (Model: SNK120S16e)
  • Front View
  • Front View
  • Side View
  • Side View
  • Side View

1U Rack Mount 20" SUN LCD Monitor Combo KVM Keyboard Drawer w/ 16-Ports switches and Touch Pad (Model: SNK120S16e)

SNK120S16e
  • Overview
  • Download

LCD Drawer & KVM Benefits:
  • Multi-user Matrix KVM with either 16 or 32 ports in 1U
  • Cost efficient Combo KVM integration
  • Direct support for SUN Micro 1152 x 900 native resolution
  • Ultra high resolution 1600 x 1200
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the world wide web

Drawer Features & Options:
  • 1U rackmount drawer with 20" LCD
  • Combo interface either PS/2 or USB input to the LCD drawer
  • SUN key support including Stop, Cut, Paste, Compose etc
  • US and UK keyboard language selections with membrane mouse pad
  • Enhanced aesthetics with new moulded front panel and two point lock

Options:


DVI-D DC Power

DC Power


DVI-D


Monitor Grade A 20" industrial TFT LCD panel

Keyboard Selection:

Supporting layouts

keyboard with full numerical pad and SUN function

Dimensions:
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)

Net
Weight
Gross
Weight
SNK120 Series
442 x 650 x 44 mm
17.4 x 25.6 x 1.73 inch
589 x 856 x 168 mm
23.2 x 33.7 x 6.6 inch
20 kg / 44 lbs
26 kg / 57 lbs

KVM Selections :

Base Model 20" LCD Series
Single port w/o KVM
Combo interface
SNK120

Matrix CAT6 KVM
2 consoles Matrix
Cat6   16 port
SNK120 - MC0116
3 consoles SNK120 - MC0216
4 consoles SNK120 - MC0316
3 consoles Matrix
Cat6   16 port
SNK120 - MC1116
4 consoles SNK120 - MC1216
4 consoles SNK120 - MC2116

2 consoles Matrix
Cat6   32 port
SNK120 - MC0132
3 consoles SNK120 - MC0232
4 consoles SNK120 - MC0332
3 consoles Matrix
Cat6   32 port
SNK120 - MC1132
4 consoles SNK120 - MC1232
4 consoles SNK120 - MC2132

Matrix DB-15 KVM
2 consoles Matrix
DB-15   8 port
SNK120 - M018
3 consoles SNK120 - M028
4 consoles SNK120 - M038
3 consoles Matrix
DB-15   8 port
SNK120 - M118
4 consoles SNK120 - M128
4 consoles SNK120 - M218

2 consoles Matrix
DB-15   16 port
SNK120 - M0116
3 consoles SNK120 - M0216
4 consoles SNK120 - M0316
3 consoles Matrix
DB-15   16 port
SNK120 - M1116
4 consoles SNK120 - M1216
4 consoles SNK120 - M2116

Combo CAT6 KVM
1 consoles Combo
CAT6   8 port
SNK120C8
2 consoles SNK120CCE8
2 consoles SNK120CIP8
1 consoles Combo
CAT6   16 port
SNK120C16
2 consoles SNK120CCE16
2 consoles SNK120CIP16
1 consoles Combo
CAT6   32 port
SNK120C32
2 consoles SNK120CCE32
2 consoles SNK120CIP32

Combo DB-15 KVM
1 consoles Combo
DB-15   8 port
SNK120S8
2 consoles SNK120CE8
2 consoles SNK120IP8
1 consoles Combo
DB-15   16 port
SNK120S16
2 consoles SNK120CE16
2 consoles SNK120IP16
