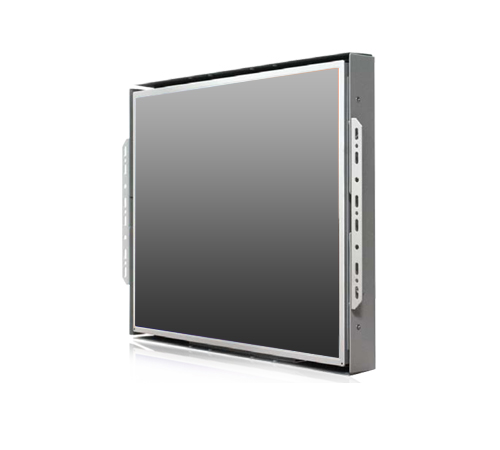

19" Open Frame High Brightness LCD Display, Wide temp -30 to 80°C with 10 points PCAP Touch (Model: EOP1900HB2WT-PCAP6)
19" Open Frame High Brightness LCD Display, Wide temp -30 to 80°C with 10 points PCAP Touch (Model: EOP1900HB2WT-PCAP6)
Main Feature
- Sunlight Readable.
- LED Backlight.
- 19.0" SXGA TFT LCD with resolution up to 1280 x 1024
- Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marline, transportation, gaming, gas pump.
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Active Display Area (mm) | 376.32(H) x 301.06(V) |
| Display Resolution (pixel) | SXGA (1280 x 1024) |
| Pixel Pitch (mm) | 0.294 x 0.294 |
| Display Color | 16.7M (RGB 6-bit + HiFRC data) |
| Viewing Angles (CR≥10) | 85/85/80/80 (R/L/U/D) |
| Contrast Ratio | 1000:1 (typ.) |
| Brightness (cd/m²) | 1500 (typ.) |
| Response Time (msec) | 5 (typ.) |
| Backlight Unit | LED |
| Power Source | AC 100~240V, Universal |
| Signal Connector | VGA+DVI+HDMI |
| Optional Touch Screen | 10 points PCAP Touch |
| Sales Inquiry | ||
 |
Sales Phone: | 888-483-2418/Press 2 510-226-9226/Press 2 |
 |
Email: | sales@itechlcd.com |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
