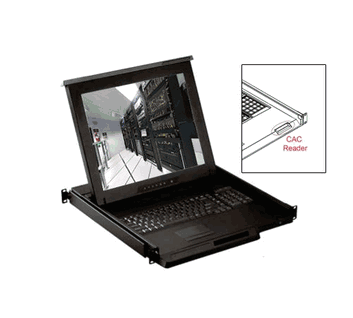

1U Rackmount 19" LCD Monitor w/ Drawer Integrated w/ DB-15, 8-port KVM USB Hub KVM (Model: NVP119H8-CAC-e)

1U Rackmount 19" TFT LCD Monitor w/ Notebook Keyboard & Touch-pad Mouse Drawer 1280x1024 Resolution Integrated with DB-15, 8-port KVM USB Hub KVM

1U Rackmount 19" TFT LCD Monitor w/ Notebook Keyboard & Touch-pad Mouse Drawer 1280x1024 Resolution Integrated with DB-15, 8-port KVM USB Hub KVM

NVP119H8-CAC-e
  • Overview
  • Specifications
  • Download

Features:

  • 1U 19" LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with touchpad
  • Short depth design of 460mm and 500mm respectively
  • One Man installation design
  • New enhanced aesthetics with molded front handle
  • 2-year standard warranty ( upgradable up to 5 years )


Options:

  • HDMI 1.4 + DVI-D + Audio in & out + Speakers ( AV4.4 )
  • HDMI 1.4 + Speakers ( HDMI )
  • S-Video + Composite + Speakers ( BNC )
  • 3G / HD / SD-SDI Broadcast-grade input + Speakers ( SDI )
  • Front USB hub port for device access ( USB )
  • 2-post rack mounting brackets ( ORB-2.1 )
  • DC power : 12V / 24V / 48V / 125V / 250V
  • SUN Micro keyboard option
  • 19" Touchscreen : Resistive 1-pt
LCD Panel
Panel size ( diagonal ) 19"
Native resolution 1280 x 1024
Brightness ( cd/m² ) 250
Contrast ratio ( typ. ) 1000 : 1
Colors 16.7 M
Viewing angle ( L/R/U/D ) 85/85/80/80
Response time ( ms ) 5
Dot pitch ( mm ) 0.264
Display area ( mm ) 376.32H x 270.33V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 30,000

Environment
Operating temp. -20 to 65°C degree
Storage temp. -20 to 60°C degree
Operating humidity 10~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration

Physical
Product ( W x D x H ) Console w/ KVM  442 x 620 x 44 mm
17.4 x 24.4 x 1.73 inch
Packing ( W x D x H ) Console w/ KVM  590 x 815 x 140 mm
23.2 x 32.1 x 5.5 inch
Net weight Console w/ KVM 13.7 kg / 30.1 lb
Gross weight Console w/ KVM 19.7 kg / 43.3 lb

Mounting Distance
Console w/ KVM drawer 510 ~ 840 mm
20.1 ~ 33.1 inch

Compliance
EMC FCC, CE & CCC
Safety CE / LVD, UKCA & CCC
Environment RoHS3 & REACH / WEEE

KVM Specifications
KVM Port
Number of ports : 8
Connector : DB-15 combo connector
Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet
Local Console : Nil for LCD console drawer version
USB Hub : 2 x USB type A for sharing other peripheral devices among the computers
Management
Multilingual OSD : English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey combination : Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security : Password enable & disable, up to 8 users profile for port access
PC Selection : Front button, OSD menu & hotkey
Compatibility
Hardware : HP    / IBM / Dell PC, Server and Blade Server SUN / Mac
OS Support : Windows / Linux / Unix / Mac OS
Power
Input : Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC : 12V / 24V / 48V / 125V DC input
Consumption : Max. 10W
Compliance
EMC : FCC & CE
Safety : CE / LVD & UKCA
Environment : RoHS3 & REACH / WEEE
Environmental Operating Storage / Non-operating
Temperature : 0 to 55°C degree -20 to 60°C degree
Humidity : 10~90%, non-condensing 5~90%, non-condensing
Altitude : 16,000 ft 40,000 ft
Shock : - 10G acceleration (11ms duration)
Vibration : - 10~300Hz 0.5G RMS random vibration
