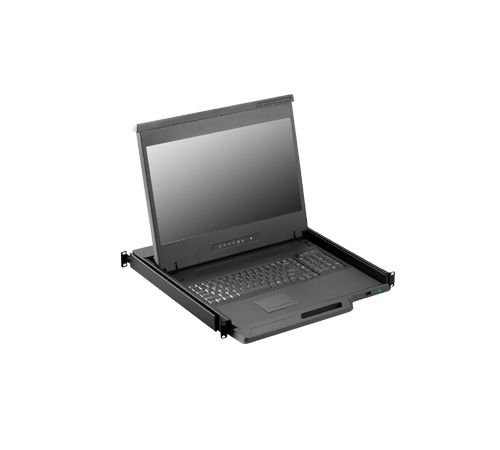

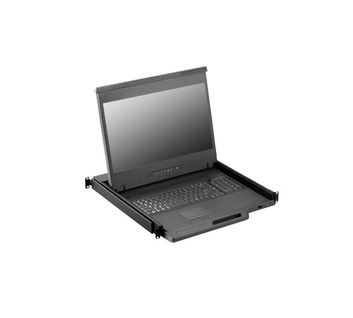

NetView:1U Rackmount LCD 19" 1280 x 1024 LCD KVM over IP remote 08-ports USB RGB KVM switch and 2 x USB 2.0 port sharing USB peripheral for computers with 104 key notepad keyboard w/ Touchpad ( Ne ), with NB-6 24.5" Deep (Model: NVP119-IPB8e)

NetView:1U Rackmount LCD  19" 1280 x 1024 LCD KVM over IP remote 08-ports USB RGB KVM switch and 2 x USB 2.0 port sharing USB peripheral for computers  with  104 key notepad keyboard w/ Touchpad ( Ne ), with NB-6  24.5" Deep (Model: NVP119-IPB8e)

NetView:1U Rackmount LCD 19" 1280 x 1024 LCD KVM over IP remote 08-ports USB RGB KVM switch and 2 x USB 2.0 port sharing USB peripheral for computers with 104 key notepad keyboard w/ Touchpad ( Ne ), with NB-6 24.5" Deep (Model: NVP119-IPB8e)

NVP119-IPB8e
  • Overview
  • Download

Drawer Features & Display Benefits

  • 1U 17" or 19" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 460mm and 500mm respectively
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
  • 2 post rack mounting available

Options:
  • S-Video + Composite (BNC) or Audio input
  • HDMI or DVI-D (either one)
  • 48V, 24V or 12VDC power



Built-in USB Hub Usage & Connection





Specifications:

LCD Panel
Manufacturer
Diagonal size
19" widescreen TFT
Max. Resolution
1280 x 1024
Brightness (cd/m2)
250
Backlight
LED
Colors
16.7 M
Contrast Ratio (typ)
1000 : 1
Viewing Angle (H/V)
160° x 160°
Active area (mm)
376 x 301
MTBF (hrs)
30,000
Signal input
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
12.7 kgs
( 27.9 lbs )
Gross
17.3 kgs
( 38.1 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
cUL, FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product
441.6 x 500 x 44 mm / 17.4 x 19.7 x 1.73 inch



Console Cable

NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB, server end
- DB15 ( VGA, USB KB & MS ), console port



Keyboard Selection

Supporting layouts





USB Hub DB-15 IP KVM Benefits

  • VGA-USB DB-15 KVM with either 8 or 16 ports in 1U
  • IP remote access across the world wide web
  • 2 x USB 2.0 port sharing USB peripheral for computers
  • Mix USB & SUN with Multi-Platform switch capability
  • Support resolution up to 1920 x 1080
  • SUN 1152 x 900 resolution compatible
  • Cost efficient remote server management between national / global sites
Note: No Daisy chain function on USB Hub KVM model



Switch Features & Options

  • Multi lingual on screen display menu
  • Control hardware and software systems from a remote location without physically being at the server’s location
  • Advanced user profiles and configurable OSD hot key combinations
  • 48V, 24V or 12V DC power options




KVM Specification

KVM Port
Number of ports: 8 or 16
Connector: DB-15 combo connector
Connectivity: Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet
Local Console
Graphic Connector: 1 x DB-15
Resolution: Up to 1920 x 1200
Input device: 2 x USB type A for keyboard & mouse
USB hub: 2 x USB type A for sharing other peripheral devices among the computers
IP Remote Console
Connector: RJ45 Ethernet
User management: 15-user login, 1 x active user
Network protocol: DHCP / BOOTP / DNS
Security: SSL v3, RSA, AES, HTTP / HTTPs, CSR
Resolution: Up to 1600 x 1200
Browser: IE, Firefox, Safari, Netscape
Compatibility
Multi-platform: Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support: Windows 7 / Vista / 2003 / XP, Linux, Unix

Power
Input: Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC: 12V / 24V / 48V DC input
Consumption:

Max. 12 Watt, Standby 5 Watt

Regulatory :
Safety: FCC & CE certified
Environment: RoHS2 & REACH compliant
Environmental
Operating: 0 to 50°C
Storage: -5 to 60°C
Relative humidity: 90%, non-condensing
Shock: 50G peak acceleration (11ms, half-sine wave)
Vibration: 58-100Hz / 0.98G (11ms / cycle)
Product Information
Dimension (W x D x H): 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch
Net weight: 3 kg / 6.5 lb
Packing Information
Dimension (W x D x H): 500 x 400 x 90 mm / 19.7 x 15.7 x 3.5 inch
Gross weight: 5 kg / 11 lb




KVM port connection




IP & Local console connection
