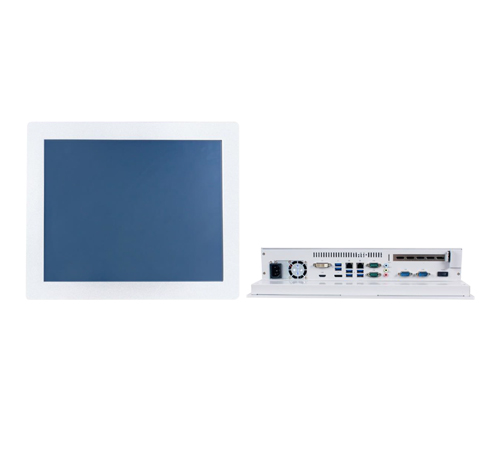

17" Wide Temp Rugged Panel PC IP65, 1280x1024 350nits NEMA4 Rugged Protection, Metal Front Bezel with 5 wires analog resistive touch (Model: JTPC1700-i)

Display
Front Bezel	- IP65, NEMA 4 rugged protection, metal front bezel
Display Type	- 17.0" With LED Backlight
Brightness ( cd/m²)	- 350 nits
Display Color	- 262K
Resolution	- 1280 x1024 @ 60Hz
Viewing Angle (H/V)	- 170°/160°
Pixel Pitch	- 0.264 x 0.264 mm
Aspect Ratio	- 4:3
Contrast Ratio	- 1000:1
Response Time	- 3.5 ms
Touch screen
Type	- 5 wires analog resistive type
Active Range	- 337.00 x 269.50mm ±0.2mm
Transparency	- 80 ±3%
Surface Hardness	- ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force	- ≧ 80g
Knock test	- 10,000,000 times keystrokes
Main System
CPU	- Intel LGA1151 Socket
RAM	- DDR4 2133MHz Max 32GB
BIOS	- 128MB SPI Flash ROM
Storage	- 1 * 2.5 SATA HDD - 1 * M-SATA connector
Watchdog Timer	- 256 levels, 0~255 sec.
OS Support	- Windows 7 / 8.1 / 10 / Linux
I/O Connector
I/O Ports and Switches	- 6 * USB3.0 - 2 * RS232 - 2 * RS232/422/485 - 1 * DVI-D, HDMI, DP - 2 * LAN (Intel I211AT+I219LM Gigabit LAN) - 1 * 110~240V AC input - 1 * Audio Jack - 1 * Expansion card - 1 * Power button

Expansion Interface
Expansion	- 2 * PCI-E mini card for WIFI or 4G/3G
Power
Power Input	- AC version: 100~240V AC
Dimensions
Case Dimensions	- 42135491mm
Packing Dimensions	- Net Weight: 7.62KG - Gross Weight: 9.35KG - Color Box dimension: 476160460mm
Certifications
Certifications	- CE, FCC，IP65 (Front)
Environment
Temperature	-Operating: -15°C ~ 60°C (with W.T. DRAM/HDD in airflow condition) - Operating: -15°C ~ 60°C (with W.T. DRAM/HDD)
Temperature	- Storage: -20°C ~ 65°C
Shock	- Operating: 15G，11ms duration
Vibration	- Operating: 5~500Hz/1 Grms
Warranty
Warranty	- The warranty of 2 years, panel the warranty of 1 year
