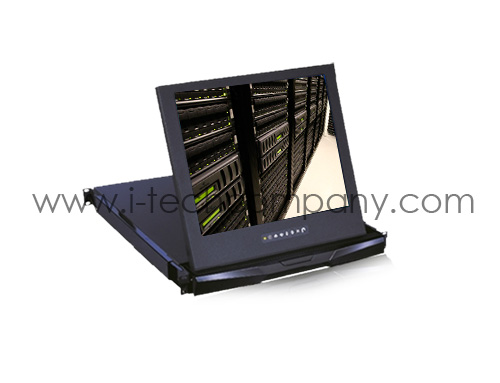

1U Short Depth 17" High Brightness LCD drawer w/ BNC & S-video option Brightness 800nits (Model: NP1417)

1U Short Depth 17" High Brightness LCD drawer w/ BNC & S-video option Brightness 800nits (Model: NP1417)

1U Short Depth 17" High Brightness LCD drawer w/ BNC & S-video option Brightness 800nits (Model: NP1417)

NP1417
  • Overview
  • Download

LCD Drawer Benefits:
  • Short Depth design of 480mm (18.9”) only
  • Depth will suit a 600mm rack application
  • “One Man” installation slides for easy, quick installation
  • Sliding LCD allowing LCD to remain open when the rack door is closed
  • Enhanced aesthetics with new moulded front panel and two point lock

Drawer Features & Options:
  • 1U rackmount LCD drawer with either 17” or 19” LCD
  • Quad display option
  • Touchscreen option
  • 12V, 24V and 48V DC power options
  • AV + BNC, Audio and DVI-D options


** With DVI-D or DC power option, the depth of NP1417 / NP1419 will be extended from 480mm (18.9”) to 530mm (20.9”)

Diagram (mm):


Product Dimensions
Model
Product Dimension
( W x D x H )
Packing Dimension
( W x D x H )
Net Weight
Gross Weight
NP1417
446 x 480 x 44 mm
17.6 x 18.9 x 1.73 inch
584 x 641 x 169 mm
23 x 25.2 x 6.7 inch
12 kg / 26 lbs
17 kg / 37 lbs
NP4119
446 x 480 x 44 mm
17.6 x 18.9 x 1.73 inch
584 x 641 x 169 mm
23 x 25.2 x 6.7 inch
13 kg / 29 lbs
18 kg / 40 lbs
