17" True FLAT P-CAP Touch Monitor with VGA/ DVI-D ( Model:KKF1700-PCAP )

17" True FLAT P-CAP Touch Monitor with VGA/ DVI-D ( Model:KKF1700-PCAP )

17" True FLAT P-CAP Touch Monitor with VGA/ DVI-D ( Model:KKF1700-PCAP )

KKF1700-PCAP
  • Overview
  • Download

Features:

  • P-CAP Multi-Touch
  • Easy Maintenance
  • 6H Scratch Resistance Level
  • Elegant and Modern Design
  • Ingress Protection Rate: IP54
  • Optional MSR and 2nd Display
  • OS: Full Win 7 and Win 8 Support



Specifications:

Display Size 17"
Display Area 338 x 270 mm
Optimal Resolution 1280 * 1024
Standard Cabinet Color Black
Panel Brightness 250 cd/m2 (typ)
Contrast Ratio 1000:1 (typ)
Response Time 5 ms (typ)
Viewing Angle(L / R / U / D) 170∘(H) / 160∘(V)
Touch Function Projective Capacitive Touch
(USB Interface)
Input Video signal VGA / DVI
Power consumption 30W Operation 3W Standby
Input Frequency Horizontal: 31.5 ~ 60.2 kHz
Vertical: 56.3Hz ~ 75Hz
Power supply DC 12V +/- 10%
Temperature Operating : 0℃~40℃ ; Storage : -10℃~50℃
Operating : 32℉~104℉ ; Storage : 14℉~122℉
Humidity Operating : 20%~80% ;
Storage : 10%~90%
Weight 5.86 kg (12.89lbs)
Physical Dimension WxHxD 399 * 338.8 * 200 (mm)
15.7 * 13.34 * 7.87 (inch)
Approval CE, FCC

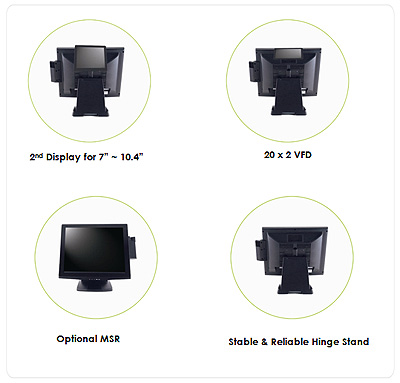

Optional MSR, Wall Mount, VFD Display, 2nd Display, Finger Print Reader, DallasKey
