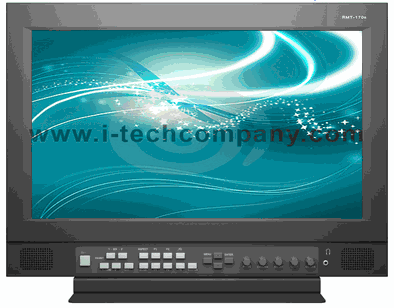

RMT-170e-HD

17" LCD Video Monitor with HD/SD-SDI input/output, VGA/DVI-D/HDMI input and analog audio inputs and  analog audio outputs. (Model: RMT-170e-HD)

17" LCD Video Monitor with HD/SD-SDI input/output, VGA/DVI-D/HDMI input and analog audio inputs and analog audio outputs. (Model: RMT-170e-HD)

RMT-170e-HD
  • Overview
The RMT-170e-HD monitor is an ideal solution for viewing many different types of HD/SD video and computer input.

By employing a 1920 x 1200 TFT/LCD screen, a perfect medium is reached in the scaling and interpolation process, providing superb imaging regardless of video format.

This light and nimble monitor comes with a plethora of in-monitor display features including IMD, Tally, timecode, 4 channels of level metering, format display, and area/title safe.

The RM-170e-HD also provides a host of audio tools including level metering and built-in speaker monitoring of its dual stereo analog inputs or SDI embedded audio.

Desktop stand or 19” rackmount configuration.


Specifications:

Rack Height: 6RU
Dimensions: 12.1X16.3X2.8" (308X415X72MM) - WITHOUT STAND OR RACK-MOUNT
Power Consumption: 40W
Signals Monitored: ANALOG;HD/SD-SDI;SD-SDI
Analog Inputs: 4 UNBALANCED ANALOG AUDIO INPUTS ON RCA; 1 CVBS VIDEO INPUT ON BNC; 1 CONFIGURABLE COMPONENT (YPRPB
Analog Outputs: 2 UNBALANCED ANALOG OUTPUTS FROM SELECTED ANALOG SOURCE ON RCA
SDI Inputs: 2 HD/SD-SDI VIDEO INPUTS ON BNC (1 PER SCREEN); 1 CONFIGURABLE DVI-I VIDEO INPUT (DVI-D, VGA OR HDMI
SDI Input Termination: 75 OHMS (BNC - UNBALANCED)
SDI Outputs: 1 RESHAPED AND RECLOCKED HD/SD-SDI VIDEO OUTPUTS OF SELECTED SDI INPUT ON BNC
Level Meters: ON-SCREEN FOR UP TO 8 OF 16 CHANNELS
Level Meter Dynamics: VU OR PPM OR BOTH
# of Displays: 1.0
Display Size: 17.0 IN DIAGONAL
Display Modes: NTSC/PAL AUTO RECOGNITION
Active Viewing Area: 14.46"H X 9.04"V, 367MMH X 230"V
Native Aspect Ratio: 4:9
Resolution: 1920 X 1200
Viewing Angle: 70 DEGREES LEFT/RIGHT; 70 DEGREES UP; 20 DEGREES DOWN
Pixel Pitch: 0.191 MM X 0.191 MM
Pixel Response: <8 MS OFF-ON-OFF (BLACK TO WHITE TO BLACK)
Lamp LIfe: 10K HOURS
Luminance: 400 CD/M^2
Contrast: 600 TO 1
Color Depth: 16.2 MILLION COLORS
Aural Sound Outputs: INTEGRATED LEFT AND RIGHT SPEAKERS; 1/8" STEREO HEADPHONE JACK, MUTES SPEAKERS
Other Features (1): LOCAL CONTROL (VIA MENU OPERATION) FOR: SAFE AREA, SAFE TITLE, CENTER MARKERS, H/V DELAY, WAVEFORM,
Other Features (2): RACK MOUNT OR TABLE STAND AVAILABLE
Supplied Accessories: AC POWER ADAPTER (110-220VAC TO 12 VDC) WITH EIA REGION APPROPRIATE POWER CORD.
