15" 1024 x768 Metal Frame 1500nits LED Sunlight Readable High Brightness (Model: YSK1500H2AV)

15" 1024 x768 Metal Frame 1500nits LED Sunlight Readable High Brightness (Model: YSK1500H2AV)

15" 1024 x768 Metal Frame 1500nits LED Sunlight Readable High Brightness (Model: YSK1500H2AV)

YSK1500H2AV
  • Overview
  • Download

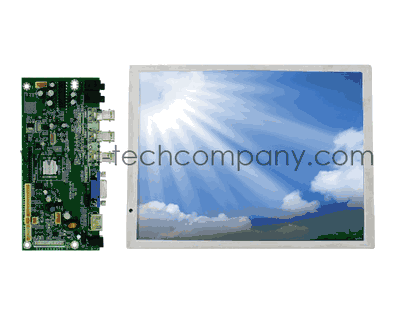

YSK1500H2AV is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel. The screen format is intended to support the XGA (1024(H) x 768(V)) screen and 16.2M (RGB 8-bits). All input signals are LVDS interface compatible.


Specifications:

Item Specifications Unit
Active Area 304.128 (H) x 228.096 (V) [mm]
Pixels H x V 1024x2, 768x2 (RGBW) -
Pixel Pitch 0.297 (per one triad ) x 0.297 [mm]
Pixel Arrangement R.G.B.W. Rectangle -
Display Mode TN, Normally White -
White Luminance 1500 (center, Typ) [cd/m]
Contrast Ratio 700 : 1(Typ) -
Nominal Input Voltage VDD +3.3 V [Volt]
Typical Power Consumption 15W [Watt]
Electrical Interface 1 channel LVDS -
Surface Treatment Anti-glare, Hardness 3H -
Support Color 16.2M -
Physical Size (H x V x D) 326.5 (H) x 253.5 (V) 13.1 (D) (Typ) [mm]
Temperature Range Operating
Storage (Non-Operating)
0 to +50
-10 to +60
[C] [C]
RoHS Compliance RoHS Compliance


Board SPECIFICATION:

Input / Output AV CVBS 1.0Vp-p, 5%.
  S-Video S-Y: 0.714Vp-p 5% ; S-C: 0.286Vp-p 5%
HDMI 480p, 576p, 720p, 1080i, 1080p
YPBPR 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC-RGB Mode DOS, VGA, SVGA, XGA, SXGA, WUXGA
  Color 24-bit
Audio Input AV1/SV same R/L input ; PC same R/L input;
AV2/Yvbcr same R/L input
Output LCD Interface Dual LVDS
Power Standby ≤ 1W
Speaker 2 x 6W (4Q)
(Option: HeadPhone output 600mW / 32Q)
Operations User Controls(OSD) On/Off Power Button - Select Up/down and adjust +/- button
Other OSD Language Simplified Chinese, English, French, German, Italian, Spanish, Portuguese
  Video Processing 3D motion adaptive video de-interlacer
