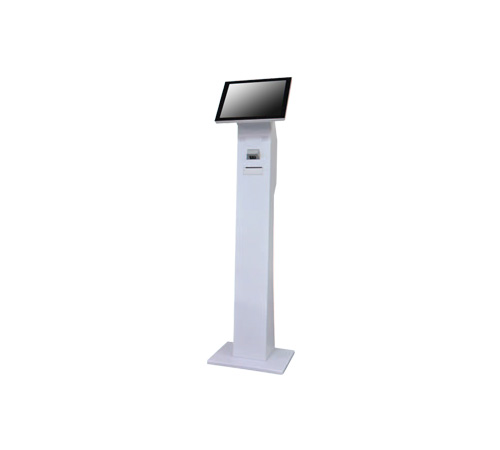

15" Self Service Retail Kiosk Slim profile, Modular design reduce total cost of ownership with N3010 Base Frequency 1.04 GHz , Burst Frequency 2.24 GHz (Model: MRKW1500PC-PC)

15" Self Service Retail Kiosk Slim profile, Modular design reduce total cost of ownership with N3010 Base Frequency 1.04 GHz , Burst Frequency 2.24 GHz (Model: MRKW1500PC-PC)

15" Self Service Retail Kiosk Slim profile, Modular design reduce total cost of ownership with N3010 Base Frequency 1.04 GHz , Burst Frequency 2.24 GHz (Model: MRKW1500PC-PC)

Main Feature

    • Slim profile for space-constricted environments
    • Various peripheral options for multi-application deployment
    • Heavy duty design for continuous use in unsupervised area
    • Modular design reduce total cost of ownership
MRKW1500PC-PC
  • Overview
  • Specifications
  • Download
  • Contact Sales

Features:

  • Slim profile for space-constricted environments
  • Various peripheral options for multi-application deployment
  • Heavy duty design for continuous use in unsupervised area
  • Modular design reduce total cost of ownership

Experience

  • Information Kiosk in Mall / Department Store / Hospital
  • Price Check / Membership in Supermarket / Discount Store
  • Ticketing Kiosk in Movie Theater / Golf Club
  • Queuing Kiosk in Bank/ Hospital
Processor System CPU N3010
Frequency Base Frequency 1.04 GHz , Burst Frequency 2.24 GHz
Cache 2 MB
Main Board MS-98I8
Memory Technology DDR3L 1600 MHz
Max. Capacity 8 GB
Socket 1 x 204-pin SO DIMM
Internal Display
15.0"
(LED Backlight)
Panel Size 15.0"
Resolution 1024x768
Viewing Angle Horizontal : 80 / Vertical : 70 degree
Brightness 250 cd/m2
Color Support 16194277/262144 Color
Contrast Ratio 700
Response Time 16ms (Rising : 5 ms / Falling : 11 ms)
15.0" Touchscreen Touchscreen Type Projected Capacitive (PCAP)
Surface Hardness ≧6H
Transparency 85%
I/O Interface USB USB 2.0 x 1
Ethernet Speed 10/100/1000 Mbps
Controller Realtek RTL8111G GbE LAN
Connector RJ45 x 2
Audio Chipset Realtek ALC887-VD2-CG HD Audio Codec
Speaker Internal : Speaker 8Ω/2W x2

Storage Supports one 2.5" SATA HDD
Printer NP-K3052D 3" (80mm)
Auto Loading function
Paper near-end detection
Wifi (Optional) RTL8811AU 802.11n 1T1R Solution for 2.4G Hz band
Scanner Honeywell
N3680
CCD-2D
CMOS sensor with 640 x 480 pixel resolution
RFID RF 320 13.56M Hz Mifare ISO14443A Standard
Transponder : read only
Power Power Type Adapter 120W/24V
Power Input AC 100~240V @50~60Hz
Battery Lithium 3 V / 220 mAH
