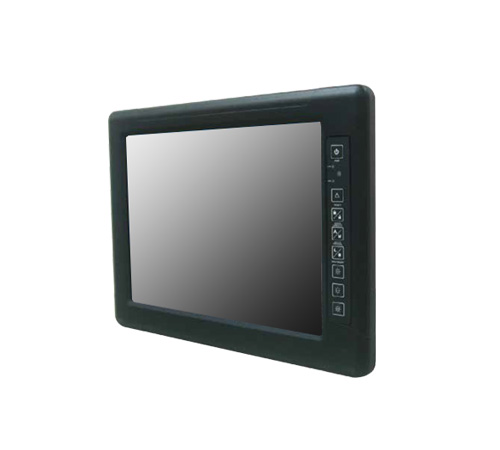

15" Panel PC, Full IP67, 1000 nits, 1024 x 768 w/ Intel Core i5-7200U Kaby Lake 2.5GHz (turbo to 3.1GHz) and 5 Wire Resistive Touch (Model: WRD1500HB-i5-TR)

DISPLAY SPECIFICATION
Size	15"
Resolution	1024 x 768
Pixel Pitch	0.297 x 0.297
Contrast Ratio	2000:1
Panel Brightness	1000 nits
Display Color	16.2M,8-bits
Active Display Area	304.128(H) x 228.096(V)
Viewing Angle	-88~88(H);-88~88(V)
Touch	5 Wire Resistive
SYSTEM SPECIFICATION
Processor	Intel 7th Generation Core i5-7200U 2.5GHz (turbo to 3.1GHz)
BIOS	Insyde BIOS
Chipset	Intel SoC Integrated
Memory	4GB DDR4-2133 SO-DIMM (Max 16GB)
Lan Controller	2 x GbE LAN
Storage	64GB M.2 B Key SATA III (Options up to 512GB)
Security Support	Trusted Platform Module (TPM 1.2)
I/O CONNECTORS
Back Panel I/O Port	1 x LAN 2 x USB 1 x RS-232 1 x 9~36v DC-IN
IN FRONT CONTROL
Control Button	Power On/ Off, Reset, Brightness up& down, Lock& unlock, Auto-dimming&manual dimming, Day& night mode, LED adjustment
Led indicator	Power Status, HDD Status

MECHANICAL AND ENVIRONMENT
Dimensions (W x L x H)	398 x 308 x 58 mm
Net Weight (kg) (with touch)	4.9 kg
Power Input	9~36V DC In with isolation, Optional 6-60V DC In, with Ignition On/Off delay
Operating Temperature	-10°C to +55°C
Operation Humidity	10% to 95% (non-condensing)
Shock*	Compliance with MIL-STD-810F/G
Vibration*	Compliance with MIL-STD-810F/G
Mechanical and Environment	When use SSD or Industrial Compact Flash
Certifications	CE, FCC Class B, MIL-STD-810F/G
Product Option Items
Mounting Bracket and Kits	One robust bracket with locking handle (Can be adjusted from 5° to 90°)
Sunlight Readable	Transflective film enhancement (optional)
OS	Windows Embedded Standard 7 (64 bit), Windows Embedded 8.1 Industry Pro (64 bit), Windows 10 IoT Enterprise
Touch / Anti-reflective Glass	3mm Anti-reflective Protection Glass (w/o Touch)
WLAN	Mini PCI-E base Wireless LAN card with SMA antenna
