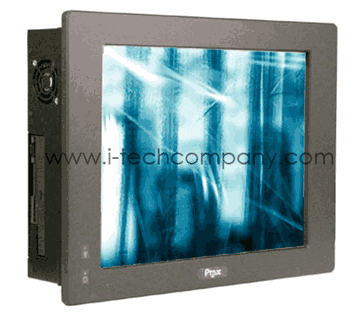

15" Fanless and Low Power Panel PC (Model: PPC-7505F )

15" Fanless and Low Power Panel PC (Model: PPC-7505F )

15" Fanless and Low Power Panel PC (Model: PPC-7505F )

PPC-7505F
  • Overview
  • Specifications
  • Download
Features
Intel Celeron M ULV CPU on board
Totally fanless and quiet design
Low power consumption and economical solution
On-board IDE interface, Type II Compact Flash slot
Optional slim CD-ROM drive
Optional PCI Expansion slot (1 or 3 slots)
24V DC power support, optional power adapter for AC power
Systems
CPU Type Intel Celeron M ULV 1.0GHz on board
Memory Support 1 x 200pin DDR SO-DIMM, support DDR 266 SDRAM up to 1GB
Front Bezel Aluminum
IP65 / NEMA4 Yes
Power Supply DC 24Vin 80W power supply / AC 100-240Vin (optional power adapter)
O.S. Support Win 98SE / 2000 / XP / CE.net, Linux Redhat 8.0/9.0
Dimension (W x H x D) 440 x 344 x 110 mm (17.32" x 13.54" x 4.33")
System Weight 9 Kg (20.9lb)
VESA Mounting Support 75mm / 100mm VESA bracket (optional)
Certificate CE / FCC

I/O Ports
USB 2 x USB2.0
KB / Mouse 2
Audio Line in / Line out / MIC in
Parallel 1 x parallel port (SPP / EPP / ECP)
Serial Port 4 x COMs, COM1 supports +5V or +12V, COM2 for RS232/422/485, COM 2/3/4 supports +5V only
Digital I/O N/A
LAN 10/100 Mbps
VGA 1
Brightness Control VR on rear panel
Drive Bay 1 x 2.5" HDD, 1 x IDE CF slot on board, 1 x Silm CD-ROM (optional)
Expansion Slots 1 x PCI or 3 x PCI slot (optional)

Display
LCD 15" XGA TFT LCD
Touch Screen 7W Analog resistive (USB interface)

Environment
Operation Temperature 0陡40蚓(32陡104蚌)
Storage Temperature -20陡60蚓(-4陡140蚌)
Humidity 20~90%



Ordering Info
Order Number Description
PPC-7505F Fanless Panel PC with 15" LCD, Intel Celeron M ULV 1.0GHz CPU board, resistive touchscreen, 24V 80W DC power supply
PPC-7500-1P 1 x PCI riser card for PPC-7505F/7507F
PPC-7500-3P 3 x PCI riser card for PPC-7505F/7507F
EFSP120-ACB 120W, 24 Vdc output power adapter
PPC-VESAKIT VESA bracket
