15" NEMA4 Panel Mount LCD Touch Screen (Model: CN1500-TRS)

15" Industrial NEMA4-panel-mount LCD Touch screen w/ Serial Controller  (Model: CN1500-TRS)

15" Industrial NEMA4-panel-mount LCD Touch screen w/ Serial Controller (Model: CN1500-TRS)

CN1500-TRS
  • Overview
  • Download

Industrial grade NEMA 4x approved Front-Panel-Mount LCD integrated Touch screen monitor available in 15.0" diagonal size. The active matrix (TFT) LCD, resistive-type touch screen is mounted in a rugged steel enclosure less than 3" deep, with Zinc plating for optimum noise immunity. Touch screen communication to CPU is RS232. Other diagonal sizes and communications format are available on custom basis. Video input is VGA.

This is a robust industrial grade display designed to withstand harsh environments and provide easy access for upgrade or maintenance. The display surface has a chemical resistant, polyester overlay that adds to the display's rugged design.

Industrial LCD Display Specifications


Display

Color TFT- LCD; 1024 x 768 resolution;
VGA, SVGA, XGA,  SXGA;
15.1" diagonal display area, polyester face panel
Display Brightness

300 nits

Touch Screen

Analog Resistive; protective overlays composed of
polyester; includes Windows drivers

Backlight
Cold cathode - typical life expectancy 25,000 hours.
Mechanical Specifications


Material

Stud Mounted Metal Bezel, black


Bezel

14 gauge steel, CRS

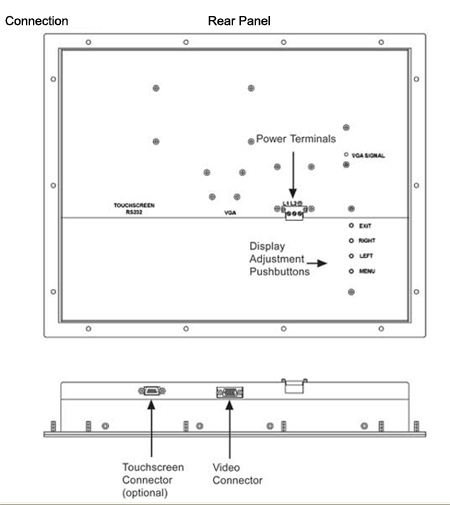

Ports

Available only in RS-232 port for Touch Screen;
One Video port



VGA Cable

15-pin male D-sub at each end - 6, 10, 30 and
60 foots lengths available



Service Power

AC - 100 to 250 VAC at 50/60 Hz



Power Consumption

AC - less than 40 VA


Fuse Rating
1.5 Amp Slo-Blo 250V

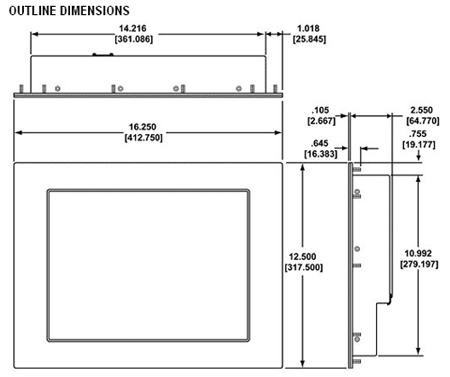

Dimensions
16.250"W x 12.50"H x 2.550"D
(412.750 x 317.50 x 64.770 mm)


Weight

12.3 lbs. (5.6 kg)

Environmental Specications


Operating Temperature

0 to +50° C (32 to 122° F)



Storage Temperature

-20 to +60° C (-4 to +140° F)


Humidity

10 to 95% Relative Humidity (non-condensing)



Electrical Noise Tolerance

NEMA ICS 2 - 230 showering arc ANSI C37.90a - 1974
SWC Level C Chattering Relay Test


Ratings

NEMA 4X (Indoor use only)


Agency Approvals
CE mark, UL/CUL, FCC compliant


Touch Screen Typical Specifications
COMMERCIAL Touch Screen  INDUSTRIAL Touch Screen MILITARY Touch Screen
Mechanical
 Actuation Force* 20-500 grams 20-500 grams 20-500 grams
 Actuation Travel 0.05 mm 0.05 mm 0.05 mm
 Thickness (w/o sup.) 0.50 mm 0.50 mm 0.50 mm
 Thickness (w/sup.) 2 mm (min) 2 mm (min) 2 mm (min)
 Mechanical Life 36 million + 36 million + 36 million +
 Electrical
Contact Resistance:
     Open 20 Meg Ohm 20 Meg Ohm 20 Meg Ohm
     Close 10-30 K-Ohm 10-30 K-Ohm 10-30 K-Ohm
Operating Voltage 5 Volts 5 Volts 5 Volts
Operating Current 5 Micro Amp 5 Micro Amp 5 Micro Amp
ESD Shield 7 KV Min 7 KV Min 7 KV Min
Optical
 Light Transmissivity:
 @ 550 Nano Meters  82%-83% 82%-83% 82%-83%
Environmental
 Temperature
        Operating &
Non-Operating:
0 to 35°C (32° to 95°F) -10° to 55°C (14° to 131°F) -40° to 85°C (-40° to 185°F)
 Altitude
         Operating &
Non-Operating:
12,000 meters 12,000 meters 12,000 meters
 Vibration
  0.7G @ 15 Hz 0.7G @ 15 Hz 0.7G @ 15 Hz
1.3G @ 25 Hz 1.3G @ 25 Hz 1.3G @ 25 Hz
3G @ 55 Hz 3G @ 55 Hz 3G @ 5 Hz
 Shock
  30G for 11 Mil. Sec. 30G for 11 Mil. Sec. 30G for 11 Mil. Sec.
 * Using a .375 inch diameter RTV tip.
Installation Manual
Windows Mac Linux

Windows 2K/XP

Windows 9X/ME

Mac

Windows NT 4.0

DOS

Linux

Windows CE
Click for download driver
