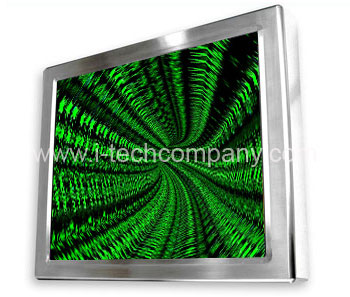

15" Chassis Mount, Full NEMA 4X / Waterproof Stainless Steel Enclosure, 1024x768 Native, 250nits, 110/220VAC Input, (Model: ACH1500-SIP-TN)

15" Chassis Mount, Full NEMA 4X / Waterproof Stainless Steel Enclosure, 1024x768 Native, 250nits, 110/220VAC Input,  (Model: ACH1500-SIP-TN)

15" Chassis Mount, Full NEMA 4X / Waterproof Stainless Steel Enclosure, 1024x768 Native, 250nits, 110/220VAC Input, (Model: ACH1500-SIP-TN)

ACH1500-SIP-TN
  • Overview
  • Download

5-wire Touchscreen

Available with a 5-wire resistive touchscreen, this option increases operator accuracy and efficiency. iTechLCD's touchscreen's are constructed with the harshest environments in mind. They typically deliver drift-free operation for a lifetime of 35 million finger touches with a long-life 490,000 hours MTBF.

Panel Mount

The ACH1500 is designed to be panel mounted. The unit comes with 13 mounting screw locations yielding NEMA sealability when properly installed. Using an industry standard cutout.

LCD Panel
Display size ( Diagonal ) 15 inch
Resolution 1024 x 768
Backlight Lifetime 30,000 hours
Visual Characteristics
Colors 16 million
Aspect ratio 4 : 3
Viewing angle (V/H) 120° / 130°
Response time (Typical) 12 ms
Pixel Pitch (mm) 0.297 x 0.297
Contrast ratio 500 : 1
Brightness 250 nits
Touch Screen
Technology 5 Wire Resistive
Touch rating 35 Million Touches
MTBF 490,000 hours
Interface RS-232
Driver WinCE, WinXP
Receiver
Video bandwidth 350MHz
Video bandwidth
VESA
Equalization
Continuous analog control
RGB delay contral
YES
ESD protection
Core chipset—±8kV
Input
1 x RJ-45
Power/Thermal Specs.
Power Requirement ( Max )
110VAC, 24VDC
Power Consumption ( Max )
32 W
Heat Dissipation 109 BTU/hr
Physical Information
Mounting

Multiple Options
Physical Dimension (L x W x H)
14.51 x 12.42 x 4.09 inch
368.55 x 315.47 x 103.89 mm
Environmental
Operating Temp
0°~ 50°C ( 32° ~ 122°F )
Storage Temp
-20° ~ 60°C (-4° ~ 140°F)
Relative Humidity
5%~95% (non-condensing)
Rating NEMA 4X
Accessories
A24DC 24 VDC Input power cord
AWRJ45 Waterproof RJ45 Calbe (3m)
APA66 110-220VAC Input, 24VDC Output 66W AC Power Adaptor
