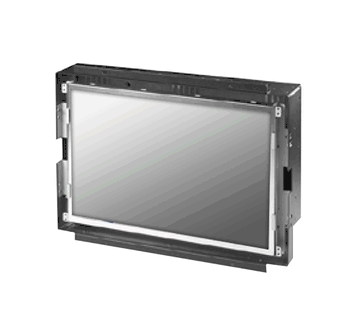

Open frame, Wide 12.1" LCD monitor, 1280 x 800, 450 nits VGA + DVI Input same housing, AC Power 110/220 Input Side OSD (Model: WOPW1210M4-E)

Open frame, Wide 12.1" LCD monitor, 1280 x 800, 450 nits  VGA + DVI Input same housing, AC Power 110/220 Input Side OSD (Model: WOPW1210M4-E)

Open frame, Wide 12.1" LCD monitor, 1280 x 800, 450 nits VGA + DVI Input same housing, AC Power 110/220 Input Side OSD (Model: WOPW1210M4-E)

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • VGA connector with optional AV.SV.AV-Looping
    • Complete custom design/solution for OEM customers
WOPW1210M4-E
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 12" viewable diagonal area
Active Area / Pixel Pitch 261.1(H) x 163.2(V) mm / 0.204(H) x 0.204(V) mm
Native Resolution / Colors 1280(H) x 800(V) / 262 K
Brightness / Contrast 350 cd/m2 (typ) / 350 : 1
Response Time ≤ 15 ms (G-to-G)
Viewing Angle (typical) H.130o (- 65o ~ + 65o) , V. 115o(- 65o ~ + 50o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System N / A
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 10 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 4 Kgs / 5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
