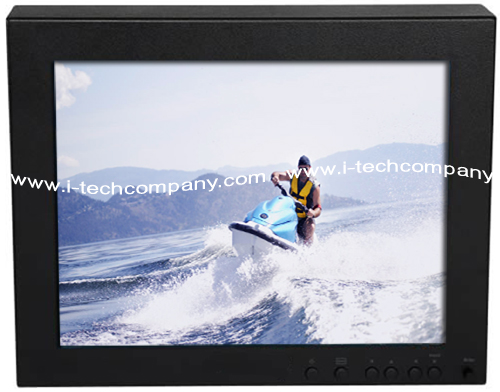

12" HD/SD SDI-Digital & Analog Video Monitor (Model:BCHH1200HD)

12" HD/SD SDI-Digital & Analog Video Monitor (Model:BCHH1200HD)

12" HD/SD SDI-Digital & Analog Video Monitor (Model:BCHH1200HD)

BCHH1200HD
  • Overview
  • Download

Product discontinues.Contact us at Info@iTechLCD.com for replace items.

Features:
* High Bright 1450 nts (cd/m²) , Dimming 100:1
* 500:1 High Contrast
*  Wide Viewing 140°/120° H & V
* Digital Video Inputs: HD/SD SDI (SMPTE 259,274/292/296)
* Analog Video Inputs: Composite, Y/C, PC VGA
* Modes: EGA up to WUXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
* Digital 10-bit processing, 16.7 million colors, SMPTE C Whites
* Aspect Ratios: 16:9, 4:3, and Variable Aspect Ratio Images (fully adjustable)
* Scan Reverse (H, V mirror images), Under/Over Scan Adjustable, PiP

Specifications:
BCHH1200HD
Active Area (Diagonal): 12.1" / 31 cm (diagonal, 4:3, 9.69x7.26" / 246x185mm)
MODES
Video Modes: 525 NTSCPAL-M / 625 PAL/SECAM (autoselect) Comp and Y/C and up to 1280x1024 (SXGA) PC Input (Internal Scalar)
HDTV Modes: 1080i30/29.97, 1080i25, 1080sF24/23.98, 1080p30/29.97,
  1080p25, 1080p/24/23.98, 720p60/59.94, (1035i30/29.97 analog).
INPUTS
Video Input Signals (nominal): 1.0 Vpp, 75
Scan Sizes:   4:3, 16:9, and Adjustable: Size, Aspect, Over/Underscan, Postion
Scan:   L/R, U/D Reversing (adjusted via menu)
Picture-in-Picture:   In window: Composite, Y/C or Component source over PC Display
Pixel (RGB Trio) Arrangement:   800 H x 600 V RGB Vertical Stripe (480,000 RGB Pixels)
Pixel (RGB Trio) Pitch, Depth:   0.308 h x 0.308 v mm
Video Resolution:   Greater than 420 TVL in Composite and Y/C
Brightness, typical, 0°:   20-1850 nts (cd/m2) (High Brightness; dimming)
Contrast Ratio, 0°:   450:1
Viewing Angle, contrast>10:1 :   H: ±60°, V: ±40/-55° (after V scan reverse: +55/-40°)
Response Time:   15/30 ms
CONTROLS
User Controls (menu system):   On/Off, Mode, Up, Down, Increment, Decrement, Lamp Dim (knob)
LIGHT
Light Source (standard):   8 CCFL, 25,000+ hours at full brite
CONNECTORS
Video Connectors (BNC, S-DIN):   Composite, S-Video, YCrCb/YPbPr (HD/SD), SDI In&2 Outs
Computer Connector:   DE-15HD-M, detachable 6' M/F cord
POWER
DC Power:   12 Vdc ±10%, 38 watts (at full brite) (optional 9-36 volts available)
DC Connector:   XLR-4M (pin 1=Gnd, pin 4=+volts)
AC Power Connector:   Desk-top, IEC-320, 100-240 Vac (supplied), UL/CSA/CE...
DISPLAY
Window (Display Area):   9.732 x 7.311 / 247 x 186 mm
Protective Screen Cover:   Non-glare Glass (protected, washable)
Cabinet Dimensions:   12.0 x 9.5 x 2.4" / 305 x 241 x 61 mm
Mounting:   10-32threaded inserts on back corners. Options: RM, wall, stands
Weight:   5 lbs / 2.3 kg
Temperature, Operating (full spec): 0 to 55° C, 0- 95% RH (non-condensing)
Temperature, Storage: -25 to +70° C (non-condensing)
Case Color: Black Textured Semi-gloss (standard)
Case Material: Aluminum
