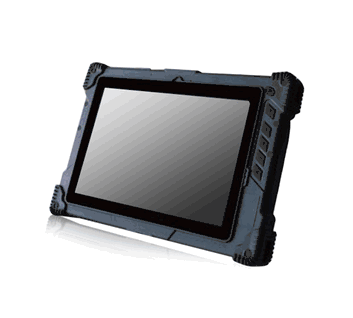

10" IP65 TFT LCD Panel 1280x800, Sunlight readable 800 nits, Capacitive Touch Panel Android 6.0 with ARM processor 8 core (Quad core 1.95GHz + Quad-core 1.15GHz) (Model: MMBW1010AO)

10" IP65 TFT LCD Panel 1280x800, Sunlight readable 800 nits, Capacitive Touch Panel Android 6.0 with ARM processor 8 core (Quad core 1.95GHz + Quad-core 1.15GHz) (Model: MMBW1010AO)

10" IP65 TFT LCD Panel 1280x800, Sunlight readable 800 nits, Capacitive Touch Panel Android 6.0 with ARM processor 8 core (Quad core 1.95GHz + Quad-core 1.15GHz) (Model: MMBW1010AO)

MMBW1010AO
  • Specifications
  • Download
  • Contact Sales
System
CPU MT8382 Quad cord 1.3GHz
Memory & Storage LPDDRII 1G eMMC 8GB / LPDDRII 2G eMMC 16GB is option
Operating System Android 4.4
Display     TFT LCD 10.1 inch
Touch type: Capacitive type
Backlight Type: LED
Display Resolution: 1280 x 800 (XGA)
Luminance : 350nits Sunlight readable, 700nits is optional
Speaker Built-in speaker, 1W / 8 ohm
Microphone Built-in microphone, -35/+-3 db, 2.2 Kohm, S/N: 58 db
Brightness adjustment Software
Proximity & Light Sensor Support
E-Campass Support
Gravity Sensor Support
Build-in Function
WiFi 2.4GHz IEEE 802.11 b/g/n
Bluetooth Integrated Blue Tooth 4.0
3G WCDMA 900/2100MHZ / HSPA 7.2/5.76Mbps, 3GPP R6/GSM/GPRS/EDGE: 850/900/1800/1900 MHZ
GPS/AGPS MTK original GPS
I/O Ports
USB 1 x USB 2.0 Type A
RS-232 1 x RS232 connector
DC Jack 1 x DC Power input
RJ45 1 x 10/100 Ethernet
Support POE (Power-Over-Ethernet applications up to 25.5W)
Micro SD 1 x Micro Secure Digital (SD) card slot
SIM Socket 1 x Micro SIM socket(3G only)
1 x Micro SIM socket(3G only) 1 x ∅3.5mm, Audio Line out / Microphone
Expansion Docking PORT 16 pin docking connector
Control Buttons 1 x Power on/off button
1 x Barcode Scanner trigger button
4 x Function Keys
Indicator 1 Power / 1 Battery status LED
Option Functions
Bar code scanner 1D or 2D(UART Interface)
Camera Front (2M) & rear (5M) dual Camera
USB Interface Media formats: ISO 7811, AAMVA, and other F2F formats
  Swipe speed: 7 to 150 cm per second, bi-directional
  Operating Life: 1,000,000 cycles minimum
RFID 13.56 MHz Mifare DESFire Reader / ISO 15693 Reader
Reading distance: 30mm ~ 50mm depending on tag types
Long distance UHF RFID
Smart card reader EMV 4.0 Level 1 spec certified
Based on ISO7816 implementation
Support PC/SC 2.0 Smart Card industry standard
Power
AC/DC Adapter Input AC: 100~240V Output DC: 16V / 4A
Battery Pack 2 x External 3S1P, 3 Cell, DC 10.8V/3400mAh
Environment
Operating Temperature -10°C (14°F) to 50°C (122°F) , 0.5°C/min; 24 hr cycle x 3 cycle
Storage Temperature -20°C (-4°F) to 70°C(158°F) , 0.5°C/min; 24 hr cycle x 7 cycles
Relative Humidity 95% @ 40°C (104°F) , 3 x 24 hr cycles
Physical
Dimensions 306 x 207 x 40(mm)
Weight 1.4Kg with battery
Accessories
Included Shoulder strap
Optional Docking station: 4 x USB, 1 x RS-232, 1 x RJ45, 1 x DC in, Earphone, Microphone
Vehicle & Wall mount: Standard VESA & DC in
12V~36V vehicle adapter, Stylus, 2 bay battery charger, Hand strap R

Operating Temperature -10°C (14°F) to +50°C (122°F)   Operating
Storage Temperature -20°C (-4°F) to 70°C(158°F)   Non-operating
Dust Protection IP6x (dust) IEC 60529 13.4 test Edition 2.1 2001-2 Non-operating
Water Protection IPx5 (water) IEC 60529 14.1/14.2.5 test Edition 2.1 2001-2 Non-operating
Vibration 5 Hz to 500Hz 2g/5g rms MIL-STD-810G-514.6,E-2 Sine Non-operating
  20Hz to 2000 Hz 7.69g rms MIL-STD-810G-514.6,E-1 Random Non-operating
Drop Test Drop Height: 1200mm
Drop Onto: 4 corner, 4 Edges, 2 Faces
  Non-operating
Regulatory CE / FCC / FCC ID / EN 60950-1 2005
