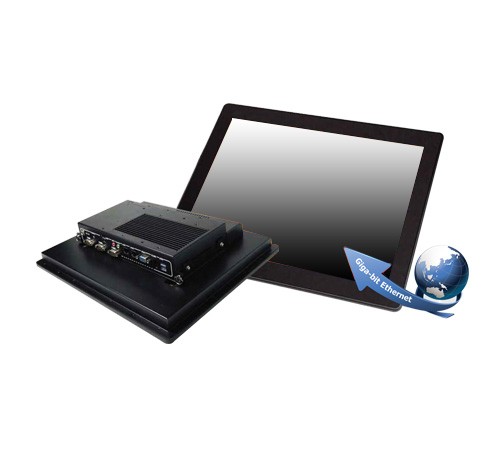

10.4" IP65 Front Panel PC with True Flat Screen Fanless (Modular Detachable Rear PC) N3150 Industrial Panel PC (Model: QPC1040NX)

10.4" IP65 Front Panel PC with True Flat Screen Fanless (Modular Detachable Rear PC) N3150 Industrial Panel PC (Model: QPC1040NX)

10.4" IP65 Front Panel PC with True Flat Screen Fanless (Modular Detachable Rear PC) N3150 Industrial Panel PC (Model: QPC1040NX)

Inquiry/Quote Request
QPC1040NX
  • Specifications
  • Download
System
Processor Intel Celeron Braswell Quad Core 6W 1.6GHz
System Memory One 204 Pin 1.5V DDRIII-L SODIMM Socket, total up to 8GB
Storage 2.5" SATA HDD or mSATA SSD
I/O       Serial port *3 (RS232/422/485 *1, RS232*2)
USB *5 (USB 3.0*2, USB 2.0*3)
Ethernet, PCI-e Gbe LAN *2, RJ-45
HDMI 1.4a *1
CRT VGA *1, DB-15
Audio, Line out *1, Phone Jack
Expansion Interface   One Mini PCI Express Socket
One Mini miniSATA Express Socket
Touch screen Projected Capacitive Touch
OS Support Microsoft Windows 7/8/8.1/10, POSReady7
Power Requirement DC Jack, +12V~+24V Wide Range Input
Display
LCD 10.4" TFT XVGA
Resolution 800*600, 16.2M Colors
Luminance (cd/m2) 350
Viewing Angle 80"
Backlight Lifetime 50,000hrs / LED
Mechanical
Construction Heavy-duty steel chassis(Black Color), Aluminum Front
Operation Temp. 32°F ~ 122°F (0°C ~ 50°C) with Ambient Air
Storage Temp. -22°F ~ 175°F (-30°C ~ 80°C)
Relative Humidity 10~90% @40°C, Non-condensing
Vibration 5~17Hz, 0.1" double amplitude peak to peak, 1.5G acceleration peak to peak
Shock 10G acceleration peak to peak (11ms)
Rating IP 65 compliant front bezel
Qualification Formal certification CE / FCC Class B
Mounting Bezel / VESA 75 mount / Wall
Dimension 226mm*294mm*71.5mm(L* W*H)
Packing Dimension 380mm*390mm*160mm(L*W*H)
Weight (net, gross) N.W: 6.82lb (3.1 KG), GW: 10.56lb (4.8 KG)
Optional Order
Memory DDRIII-L 1GB, DDRIII-L 2GB, DDRIII-L 4GB, DDRIII-L 8GB  I
Storage 2.5" SATA HDD 320G, SSD/mSATA 16G~128G
OS Microsoft Windows 7/8/8.1/10, POSReady7
