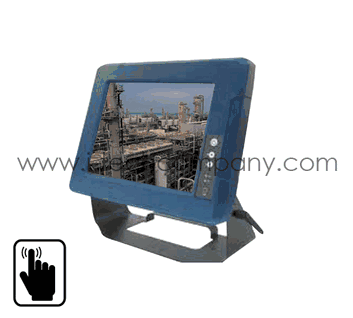

10.4" High Quality Panel, 1024 x 768 resolution, Full IP65 Dust / Water Proof Enclosures (Except I/O parts) with IntelŪ Core i5-4200U Haswell 1.6 GHz (Turbo max 2.6 GHz) w/ Resistive Touch (Model: WRDC0140X-i5-TR)

10.4" High Quality Panel, 1024 x 768 resolution, Full IP65 Dust / Water Proof Enclosures (Except I/O parts) with IntelŪ Core i5-4200U Haswell 1.6 GHz (Turbo max 2.6 GHz) w/ Resistive Touch (Model: WRDC0140X-i5-TR)

10.4" High Quality Panel, 1024 x 768 resolution, Full IP65 Dust / Water Proof Enclosures (Except I/O parts) with IntelŪ Core i5-4200U Haswell 1.6 GHz (Turbo max 2.6 GHz) w/ Resistive Touch (Model: WRDC0140X-i5-TR)

Inquiry/Quote Request
WRDC0140X-i5-TR
  • Overview
  • Download

Features:
  • IntelŪ Core i5-4200U Haswell 1.6 GHz (Turbo max 2.6 GHz)
  • High Quality 10.4" Panel, 1024 x 600 resolution
  • Full IP65 Dust / Water Proof Enclosures (Except I/O parts)
  • Aluminum Housing with Anti-Corrosion Treatments
  • Anti-Shock and Vibration Standard according to MIL-STD-810G & IEC60068-2-27
  • 5 Wire Resistive / Infrared Touchscreen / Anti-Reflective Protection Glass (Optional)
  • Optional GPS, 3G / WLAN(Either one). Digital IO / Canbus (Either one)
  • Wide Range 9 to 36V DC Input Acceptable
  • Optional 6-60V DC Input, and Optional for Ignition On/Off delay
  • Compliance with EN50155


Specifications:

Display Characteristics
Panel_Size 10.4"
Panel_Display Resolution 1024 x 768
Pixel Pitch(mm) 0.197(H) x 0.197(V)
Panel_Contrast Ratio 1200 :1 (typ.)
Panel_Brightness 350(typ.)
Panel_Viewing Angle -88~88 (H); -88~88 (V)
Active Display Area 201.4 (H) x 157.8 (V)
Display Color 16.2M ( 6 bits+FRC )
Touch(Optional) 5 Wire Resistive / IR Touch
 System Specification
Processor IntelŪ Core i5-4200U Haswell 1.6 GHz (Turbo max 2.6 GHz)
BIOS AMI System BIOS
Memory 1xDDR3L 1600 MHz SO-DIMM Max. 4GB
Storage Default 64GB mSATA MLC SSD Max.512GB
Security Support Trusted Platform Module (TPM 1.2)
 I/O Connectors
Back Panel I/O Port 2 x RJ-45 (10/100/1000 Mbps)
1 x HDMI
1 x DC-in Jack (Phoenix type)
2 x USB 3.0
1 x RS232/422/485, 1 x RS232 (Select by BIOS)
WLAN antenna SMA in top (Optional)
 In Fornt Control
Control Button Power On/ Off
Brightness Up (up to 100%)
Brightness Down (dim to 0%)
Led indicator Power On/ Off
HDD Status
 Mechanical and Environment
Dimensions (W x L x H) 315 mm x 250 mm x 67 mm
Power Input 9~36V DC in (Phoenix type)
Optional 6-60V DC in, with Ignition On/Off delay
Power Consumption 32W typ.
Operation Humidity 10% to 95% (non condensing)
Vibration* Operating: 1.60/1.96/2.18 g rms for XYZ / 5-500Hz
Mounting Mounting Bracket and Kits
Shock Operating:30g for 18ms, 300m/sē
 Product Option Items
Sunlight Readable Transflective film enhancement for optional
OS Windows Embedded 8.1 Industry Pro 64-bit
Windows Embedded Standard 7 (64-bit)
Touch / Anti-reflective Glass 3 mm (Replace touch)
Packing List (IH32) SBC Manual & Driver CD
Security Support Trusted Platform Module (TPM 1.2)
