Product discontinues. call us 888-483-2418 for replace items.

Hardware remote KVM IP access for single or multiple computers

The Smart IP Link is an economical, hardware-based, remote KVM access solution. It is uniquely tailored for users and IT professionals who wish to add a remote access link to their computers or servers at a minimal investment, without having to compromise on security, quality and functionality.

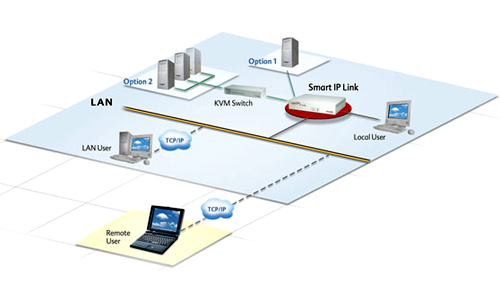

With the Smart IP Link you can easily and securely manage a single computer or dozens of servers, from any location using standard LAN, WAN or Internet connections.

The Smart IP Link offers a wealth of features including highest security standards; 256 bit SSL encryption, Java based operation as well as remote control of different serial devices, superior video and mouse synchronization and user- friendly functionality - all for an unrivaled price-performance ratio.

Features

  • Add-on Remote KVM access to existing computers and KVM Switches
  • Remote Serial Control - power management, routers & other serial devices
  • Highest Security Standards - data encryption based on 256-bit SSL, operating with Java
  • BIOS level access - independent of Operating System
  • Multiple Operating System Support
  • Browser based - user friendly, no client software needed
  • Universal Compatibility - compatible with Minicom's product lines as well as most other major KVM switching systems
  • 3 Years Warranty
Technical Specifications
Operating systems Host Computer - Windows 3.1, 9x, 2000, XP, NT4, 2003 Server, Dos, Novell 3.12 - 6, Linux
Client Computer - Windows 9x, 2000, XP, NT4, 2003 Server, Linux, Mac 10x
Internet browser with full Java support
Resolution Host Computer - Up to 1600x1200 @60Hz
Client Computer - Recommended resolution should be higher than resolution on local computer
Unit to local KVM connection Screen - HDD15, Keyboard/Mouse - MiniDin6
Unit to computer / switch connection 3 in 1 Cable 1.8m (supplied with system)
Connections
Ethernet - RJ45, 10/100 Mbit/sec autosensing
Serial - DB9
Weight Product - 1.1 Kg / 2.42 lb
Shipping - 2.35 Kg / 5.17 lb
Dimensions Product - 43Hx175Dx213Wmm / 1.69Hx6.89Dx8.38W"
Shipping - 115Hx255Dx350Wmm / 4.52Hx10.0Dx13.78W"
Power supply Internal Switching 85 - 265 VAC 50 / 60 Hz
Operating Temperature
0 to 40°C / 32 to 104°F
Warranty 3 Years
